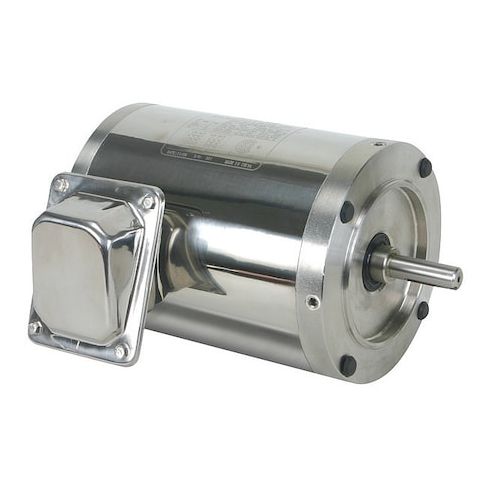

Washdown Motor, 3 Ph, TENV, 3/4 HP, 1155 rpm
This 3-phase, totally enclosed non-ventilated (TENV) washdown motor from Dayton is designed for heavy-duty applications in harsh environments. With a 3/4 HP rating and 1,155 RPM, it provides reliable and efficient operation in a variety of industries. Suitable for use at 208-230/460V AC, it offers flexibility and versatility. Its continuous duty cycle and NEMA Design B rating ensure long-lasting performance. Ideal for use in food processing, chemical plants, and other areas where high sanitation standards are required, this motor provides a reliable and cost-effective solution for your washdown needs.
Top product features:
- Three-phase operation
- Totally enclosed non-ventilated (TENV) design
- Continuous duty cycle
Top product applications:
- Food Processing Plants
- Pump Stations
- Chemical Plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,155 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 3.8-3.7/1.9 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.20
- Package Width: 11.50
- Package Height: 10.20
- Package Weight: 46.25
