Three-Phase General Purpose Motor, 7 1/2 HP, 213T Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM MPN:194150.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1356756

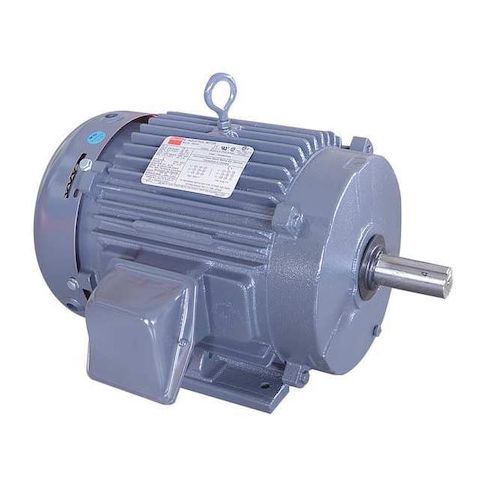

Three-Phase General Purpose Motor, 7 1/2 HP, 213T Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM
This 7.5 HP three-phase general purpose motor is designed for a wide range of applications, including industrial and commercial settings. With a nameplate RPM of 1,770 and a voltage of 230/460V AC, this motor is suitable for use in facilities with three-phase power. Its totally enclosed fan cooled design and cast iron frame ensure reliable operation in harsh environments. The motor's high efficiency rating of 91.7% and continuous duty capability make it an ideal choice for applications requiring consistent power output. Suitable for use in fans, pumps, and other equipment, this motor is a reliable and efficient solution.
Top product features:
- Three-phase AC voltage compatibility with 230/460V
- Totally enclosed fan cooled motor enclosure for improved cooling and protection
- Ball motor bearings for reduced friction and increased motor lifespan
Top product applications:
- Pump applications
- Conveyor systems
- Industrial machinery
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1,770, Frame 213T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 19.6/9.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 18.50
- Package Height: 16.00
- Package Weight: 197.00
