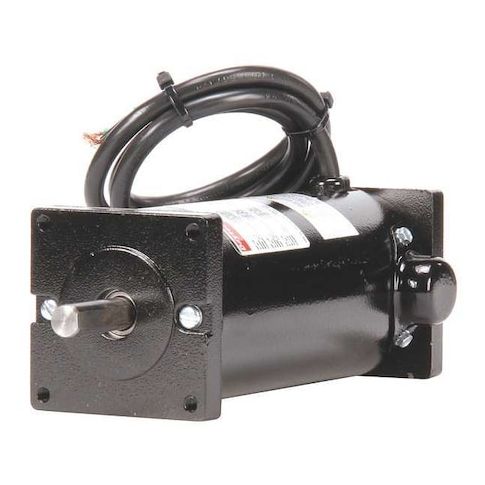

DC Motor, PM, TENV, 1/6 HP, 1800 rpm, 90VDC
The Dayton DC Motor is a high-performance, permanent magnet motor designed for continuous duty cycles in a wide range of applications. With a 1/6 HP rating and 1800 rpm, this motor is ideal for use in small machinery, automation, and robotics. Its compact, totally enclosed non-ventilated design makes it perfect for space-constrained environments. The motor's high torque output and durable construction ensure reliable operation in temperatures up to 40°C. Suitable for use in industrial automation, material handling, and medical equipment, the Dayton DC Motor is a reliable and efficient choice for any application requiring precise control and high performance.
Top product features:
- Totally Enclosed Nonventilated (TENV) design provides protection from environmental factors
- Permanent Magnet DC motor design enables high efficiency and reliability
- Shaft rotation is available in both clockwise (CW) and counterclockwise (CCW) directions
Top product applications:
- Robotics and automation systems
- Material handling equipment
- Medical devices and equipment
DC Permanent Magnet Motor, Not Applicable Phase, Motor Design Permanent Magnet, 1/6 HP, Nameplate RPM 1,800 RPM, Voltage 90V DC, 1.72 A Full Load Amps, Non-Standard Frame, Full Load Torque 5.6 in-lb, Replacement For 4Z528, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face/Base, Motor Mounting Position Universal
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.50
- Package Width: 5.60
- Package Height: 5.80
- Package Weight: 10.75
