Capacitor-Start General Purpose Motor, 1/2 hp, 1/7 hp HP, 115V AC Voltage, 56 Frame MPN:5FTT0
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1307826

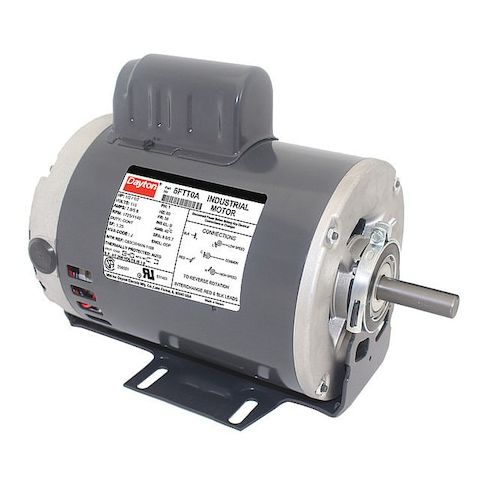

Capacitor-Start General Purpose Motor, 1/2 hp, 1/7 hp HP, 115V AC Voltage, 56 Frame
This 1/2 hp, 115V AC capacitor-start general purpose motor is designed for a wide range of applications, including industrial and commercial use. Its single-phase design and 2-speed operation make it suitable for tasks that require varying levels of power. The motor's open drip-proof enclosure and cradle base mounting make it easy to integrate into existing systems. With a service factor of 1.25 and a maximum ambient temperature of 40°C, this motor can operate continuously in demanding environments. Its compact size and lightweight design also make it a great option for space-constrained applications.
Top product features:
- Capacitor-start motor design allows for efficient operation at varying loads
- Single-phase motor design provides a simple and cost-effective solution
- Open drip-proof enclosure design protects against dust and water splashes
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp, 1/7 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, Full Load Amps 7.1/3.7 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Shaft Design Keyed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 25.00
Product info last updated on February 3, 2026 12:59pm UTC
Category: Motors
