Speed Reducer, C-Face, 56C, 10:1 MPN:4RN77
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1304861
Speed Reducer, C-Face, 56C, 10:1

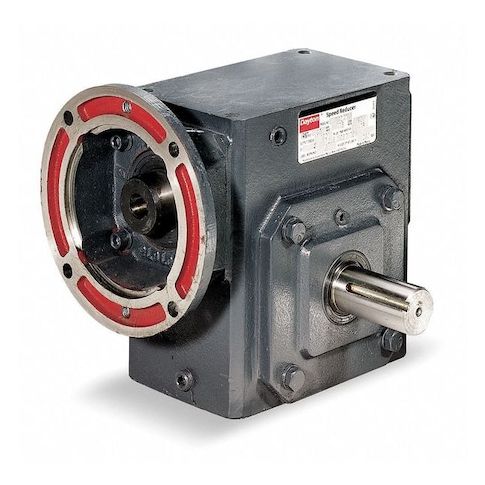

This Dayton Speed Reducer is a reliable and efficient solution for applications requiring a reduction in speed. With a gear ratio of 10:1, it can reduce input speeds to a maximum output speed of 175 RPM, making it ideal for use in applications such as conveyor systems, pumps, and fans. The C-face input connection type allows for easy mounting and the keyed output shaft provides a secure connection. The unit is constructed from durable materials, including hardened steel and manganese bronze, and features a cast iron housing for added strength and stability. It is suitable for use in a variety of industries.
Top product features:
- C-Face input connection allows for easy and secure connection to motors
- Worm gear type provides a high gear ratio in a compact design
- Maximum output speed of 175 RPM allows for precise control of slow-speed applications
Top product applications:
- Speed Reducer
- Gear Type Worm
- Application Speed Reducer
Speed Reducer, Input Connection Type C-Face, Gear Type Worm, Output Shaft Type Keyed, Maximum Output Speed 175 RPM, Motor Frame Designation 56C, Worm Center Distance 1.33 in, Gear Ratio 10:1, Rotation CW/CCW, Maximum Input Horsepower 0.75 hp, Maximum Output Torque 182 in-lb, Overhung Load Capacity 150 lb, Mounting Orientation Any Angle, Housing Material Cast Iron, Application Speed Reducer, Bearing Type Ball, Tapered Roller, Gear Material Hardened Steel, Manganese Bronze
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.20
- Package Width: 9.30
- Package Height: 9.00
- Package Weight: 19.70
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Product info last updated on March 1, 2026 1:12pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
