Capacitor-Start General Purpose Motor, 1/4 hp HP, 42CZ Frame, 115/230V AC Voltage MPN:1K058
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1267016

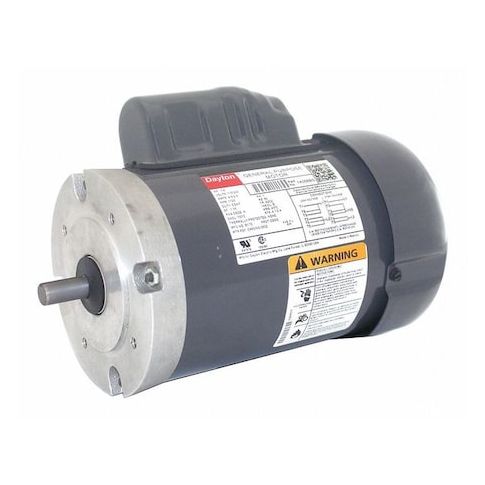

Capacitor-Start General Purpose Motor, 1/4 hp HP, 42CZ Frame, 115/230V AC Voltage
This 1/4 hp capacitor-start general purpose motor from Dayton is designed for a wide range of applications, including industrial and commercial use. Its single-phase design and 115/230V AC voltage make it suitable for various settings. The motor's high efficiency and continuous duty cycle ensure reliable operation, while its totally enclosed fan-cooled design provides protection from dust and moisture. With a maximum ambient temperature of 40°C, this motor can handle demanding environments. Its compact 42CZ frame and rigid base make it easy to mount and integrate into existing systems. Ideal for use in factories, warehouses, and other industrial settings.
Top product features:
- Single Phase Motor Design
- Totally Enclosed Fan Cooled Motor Enclosure
- Keyed Motor Shaft Design
Top product applications:
- Pump applications such as water circulation pumps, sump pumps, and sewage pumps
- Conveyor belt drives for light to medium-duty applications
- Fans for general ventilation and air circulation in commercial and industrial settings
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 4.5/2.3 A, 42CZ Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position All Angle, Motor Shaft Design Keyed
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.50
- Package Width: 8.30
- Package Height: 9.40
- Package Weight: 20.15
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on March 27, 2026 8:58am UTC
Category: Motors
