Washdown Motor, 3 Ph, TENV, 3/4 HP, 1745 rpm MPN:6WY55
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1259054

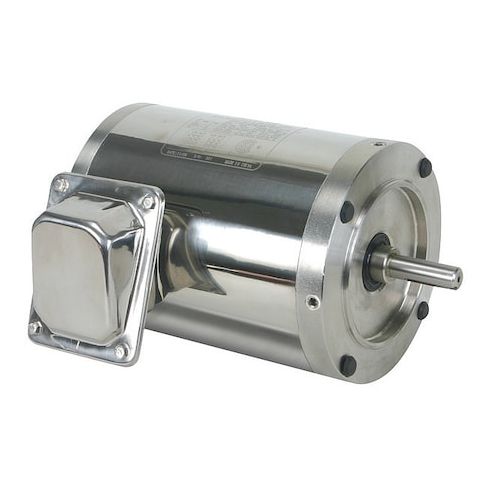

Washdown Motor, 3 Ph, TENV, 3/4 HP, 1745 rpm
This 3-phase washdown motor from Dayton is designed for use in harsh environments where exposure to water and chemicals is a concern. With a 3/4 HP rating and 1745 RPM, it provides reliable power for applications such as food processing, pharmaceutical manufacturing, and chemical plants. The totally enclosed non-ventilated (TENV) design protects against dust and moisture, while the Class F insulation and 40°C maximum ambient temperature ensure long motor life. Its NEMA Design B rating makes it suitable for continuous duty cycles, making it an ideal choice for high-demand applications where reliability is paramount.
Top product features:
- Operates at 1745 rpm
- Has a Totally Enclosed Non-Ventilated (TENV) motor enclosure design
- Has a motor service factor of 1.15
Top product applications:
- Food Processing Equipment
- Chemical Handling Equipment
- Pharmaceutical Processing Machinery
Washdown Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 2.3-2.2/1.1 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.50
- Package Width: 11.40
- Package Height: 10.20
- Package Weight: 35.25
Product info last updated on March 31, 2026 2:14am UTC
Category: Motors
