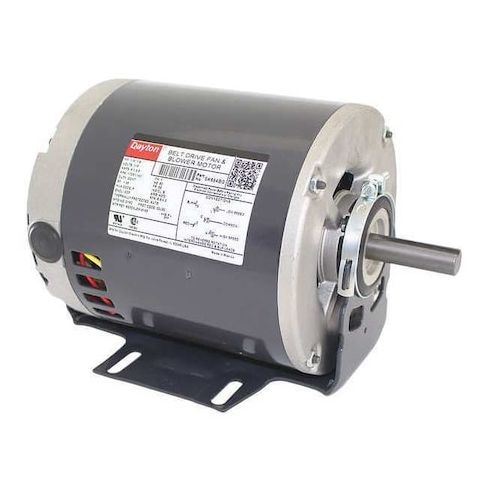

Split-Phase Belt Drive Motor, 1/3, 1/6 HP, 56 Frame, 115V AC Voltage, 1, 725/1, 140 Nameplate RPM MPN:5K654
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1251616
Split-Phase Belt Drive Motor, 1/3, 1/6 HP, 56 Frame, 115V AC Voltage, 1, 725/1, 140 Nameplate RPM
This versatile Split-Phase Belt Drive Motor is designed for a variety of applications, including fans and blowers, where a reliable and efficient motor is essential. With a 1/3 or 1/6 horsepower rating and a nameplate RPM of 1,725/1,140, this motor provides a range of speed options to suit specific needs. Its open drip-proof enclosure and all-angle mounting position make it easy to integrate into various systems. Suitable for continuous duty cycles, this motor is a reliable choice for demanding applications, offering improved performance and efficiency in a compact and durable design.
Top product features:
- Split-Phase Belt Drive Motor design provides a reliable and efficient power transmission system.
- The motor has a continuous duty cycle, allowing for prolonged operation without overheating.
- The motor features auto thermal protection, ensuring safe operation and extending motor lifespan.
Top product applications:
- HVAC System Fans
- Pool Pumps
- Industrial Ventilation Systems
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/3 hp, 1/6 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, 6.1/3.8 A Full Load Amps, 56 Frame, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel, Motor Mounting Position All Angle
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 19.70
Product info last updated on February 10, 2026 3:40pm UTC
Category: Motors
