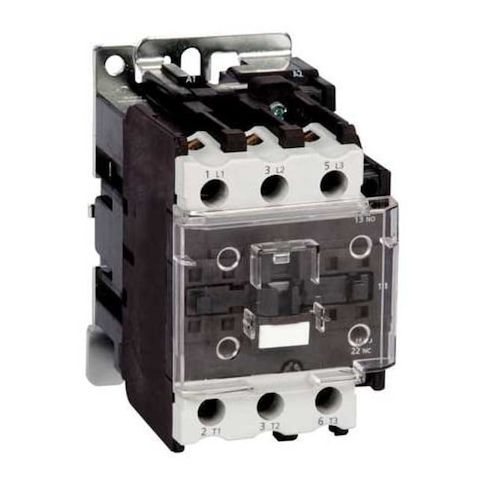

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing MPN:6EAP7
Free Shipping
In Stock
The DAYTON IEC Magnetic Contactor is a reliable and efficient switch designed for use in a variety of applications. This 3-pole, non-reversing contactor is ideal for use in industrial control systems, machinery, and equipment where a high level of reliability and performance is required. With a 24V AC coil and 2 auxiliary contacts, it provides a simple and cost-effective solution for controlling motors and other devices. Its compact design and high current ratings make it suitable for use in a range of applications, from small machines to large industrial systems.
Top product features:
- Non-reversing action
- 3-pole design
- 24 V AC coil operation
Top product applications:
- Industrial control systems for manufacturing and processing plants
- Motor control applications for pumps, fans, and other equipment
- HVAC systems for temperature control and ventilation
The DAYTON IEC Magnetic Contactor is a 3-pole, non-reversing, coil-operated switch designed for use in compliance with IEC standards. It uses a 24 V AC coil and has two auxiliary contacts (1NO/1NC). The unit has no embedded surge suppressor and no enclosure, and is listed to CSA and UL standards.
- Action: Non-Reversing
- - Poles: 3
- - Coil Voltage: 24 V AC
- - Auxiliary Contacts: 2 total (1NO/1NC)
- - Embedded Surge Suppressor: No
- - Enclosure: No Enclosure
- - Frequency: 50/60 Hz
- - Full Load Amps: Inductive 40 A
- Resistive 60 A
- - HP Ratings: 3 hp @ 120V
- 5 hp @ 230V
- 5 hp @ 240V
- 10 hp @ 208V
- 10 hp @ 240V
- 30 hp @ 480V
- 30 hp @ 575V
- - Standards: CSA, UL Listed
- - Reversing: No
- - NEMA Enclosure Rating: No Enclosure
- - Item: IEC Magnetic Contactor
- - Dimensions: 2.95 in (W) x 2.95 in (H) x 4.6 in (D)
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 5.30
- Package Height: 3.00
- Package Weight: 1.80
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
