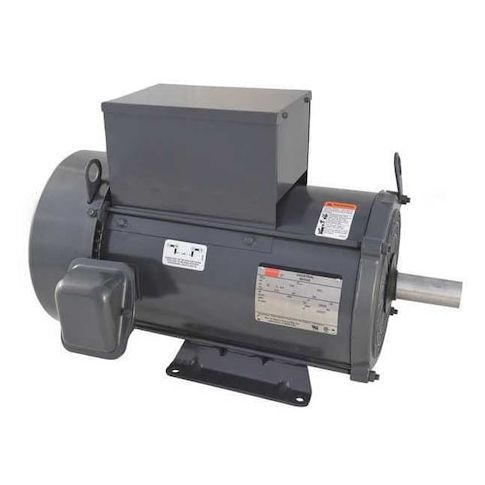

Capacitor-Start/Run General Purpose Motor, 10 hp HP, 230V AC Voltage, 215T Frame
The Dayton 10 hp Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a variety of applications. Suitable for use in industrial settings, this motor is designed to operate continuously at a maximum ambient temperature of 40°C. With a single-phase design and 230V AC voltage, it's ideal for use in applications where a high starting torque is required. The totally enclosed fan-cooled design provides long-lasting performance and protection from dust and moisture. Perfect for use in manufacturing, material handling, and other industries, this motor offers a high level of reliability and efficiency in a compact and durable package.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and clean operating environment.
- Motor Design Capacitor-Start/Run allows for efficient and reliable operation at a wide range of loads.
- Rigid Base mounting enables secure and stable installation in a variety of applications.
Top product applications:
- Pumps and compressors
- Fans and blowers
- Conveyors and conveyor systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 10 hp HP, Nameplate RPM 1,730 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 38.0 A, 215T Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Inverter Rated Not Inverter Rated
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.50
- Package Width: 23.00
- Package Height: 19.50
- Package Weight: 180.00
