Washdown Mtr, 3 Ph, TENV, 1-1/2 HP, 1725 rpm MPN:1TTB4
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1200735

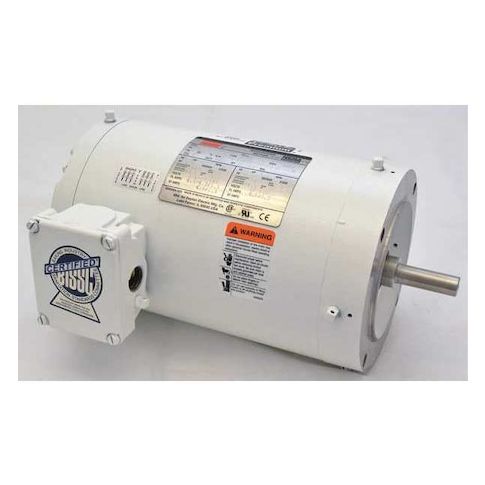

Washdown Mtr, 3 Ph, TENV, 1-1/2 HP, 1725 rpm
This 1.5 HP, 3-phase washdown motor from Dayton is designed for harsh environments and continuous operation. With a totally enclosed non-ventilated (TENV) design, it protects against dust, water, and other contaminants, making it ideal for use in food processing, chemical plants, and other industries where cleanliness is crucial. The motor's high efficiency and reliability ensure consistent performance, even in demanding applications. Its compact size and C-face mounting make it easy to integrate into existing systems. With a long lifespan and minimal maintenance required, this motor is a reliable choice for a wide range of industrial applications.
Top product features:
- Totally Enclosed Non-Ventilated (TENV) design provides a clean and dust-free environment for motor operation
- Motor shaft rotation is designed for clockwise and counterclockwise operation
- Nameplate RPM of 1,750 provides a high-speed operation capability for demanding applications
Top product applications:
- Food Processing
- Pump and Compressor Applications
- Water Treatment Plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,750 RPM, Voltage 230/460V AC, Full Load Amps 4.3/2.1 A, 56C Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Motor Mounting Position Horizontal, Motor Frame Material Steel, Finish Epoxy-Coated
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.60
- Package Width: 11.40
- Package Height: 11.30
- Package Weight: 47.11
