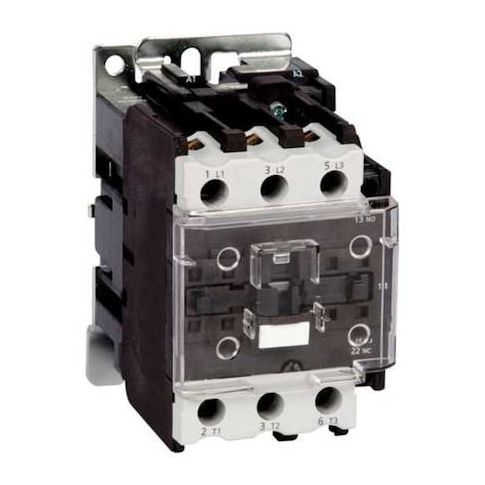

IEC Magnetic Contactor, 1NC/1NO, 240V AC, 3 P, Non-Reversing, Screw MPN:6EAR2
Free Shipping
In Stock
The DAYTON IEC Magnetic Contactor is a reliable and efficient electrical switch designed for controlling power circuits. Its 3-pole non-reversing configuration makes it ideal for applications such as motor control, lighting, and HVAC systems. With a 240V AC coil and 1NO/1NC auxiliary contacts, this contactor provides seamless control and monitoring capabilities. Its compact size and high current ratings make it suitable for a wide range of industries, including manufacturing, commercial, and residential settings. By providing precise control and reliability, the DAYTON IEC Magnetic Contactor helps to improve system efficiency, reduce downtime, and increase overall productivity.
Top product features:
- The DAYTON IEC Magnetic Contactor features a 3-pole, non-reversing electrical switch rated for controlling power circuits.
- It has a 240 V AC coil and auxiliary contacts configured as 1NO/1NC (2 total).
- The unit is rated for full load currents of up to 50 A for inductive loads and up to 70 A for resistive loads at an operating frequency of 50/60 Hz.
Top product applications:
- Motor Control Circuits
- Industrial Control Systems
- Power Distribution Panels
The DAYTON IEC Magnetic Contactor is a 3-pole, non-reversing electrical switch rated for controlling power circuits.
It features a 240 V AC coil and auxiliary contacts configured as 1NO/1NC (2 total).
The unit has no enclosure and is rated for full load currents of up to 50 A for inductive loads and up to 70 A for resistive loads at an operating frequency of 50/60 Hz.
Its dimensions are approximately: width: 2.95 inches
- height: 2.95 inches
- depth: 4.6 inches.
- Coil Voltage: Rated at approximately ±10% of specified voltage within the product's design parameters
- - Action: Non-reversing
- - Contactor Style: IEC-rated device according to applicable standards
- - Poles: Three poles rated within specified parameters
- - Auxiliary Contacts Configuration includes two contacts with one normally open contact and one normally closed contact
- - Terminal connection type suitable for specified wiring requirements
- - Does not include an embedded surge suppressor
- - Does not include an enclosure
- NEMA rating not provided or unspecified
- - Designed to operate within standard line frequencies of approximately ±5% of nominal values
- - Rated maximum current capacities under typical conditions
- actual performance may vary depending on application conditions
- - HP Ratings (typical ranges across voltages/phases): 3 hp (1P-120V)
- 7.5 hp (1P-230V/1P-240V)
- 15 hp (3P-208V/3P-240V)
- 40 hp (3P-480V/3P-575V/3P-600V)
- - Overall dimensions: 2.95 in W x 2.95 in H x 4.6 in D
- - Reversing: No
- - Includes Auxiliary Contacts: Yes
- - Item: IEC Magnetic Contactor
- - Standards: CSA, UL Listed
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.90
- Package Width: 5.10
- Package Height: 3.50
- Package Weight: 0.75
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
