Capacitor-Start General Purpose Motor, 1/5 hp, 3/4 hp HP, 115V AC Voltage, 56 Frame MPN:5FTT1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1150493

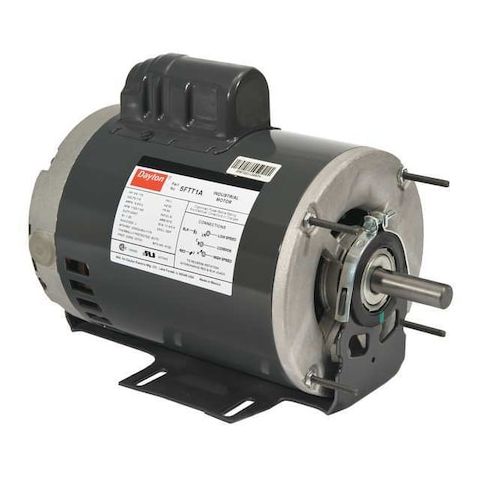

Capacitor-Start General Purpose Motor, 1/5 hp, 3/4 hp HP, 115V AC Voltage, 56 Frame
The Dayton Capacitor-Start General Purpose Motor is a reliable and efficient solution for a variety of applications. With a power output of 1/5 to 3/4 horsepower, this motor is suitable for use in residential and commercial settings, such as in HVAC systems, water pumps, and conveyor belts. Its single-phase design and capacitor-start motor design provide a cost-effective and easy-to-install solution. The motor's open drip-proof enclosure and keyed shaft ensure safe and reliable operation, while its continuous duty cycle and thermal protection ensure optimal performance in demanding applications. Suitable for use in temperatures up to 40°C.
Top product features:
- Capacitor-start design for improved motor efficiency and reliability
- Single-phase motor operation for simplified installation and integration
- Open drip-proof motor enclosure design for protection against dust and moisture
Top product applications:
- Pumps
- Fans
- Air Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/5 hp, 3/4 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, Full Load Amps 9.8/5.2 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Keyed, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 32.00
Product info last updated on January 19, 2026 11:21pm UTC
Category: Motors
