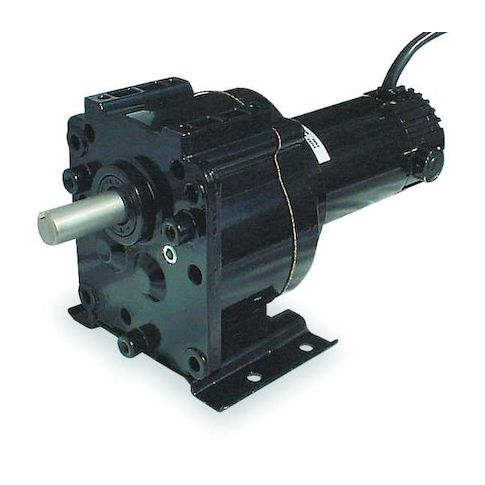

DC Gearmotor, 82 in-lb Max. Torque, 34 RPM Nameplate RPM, 90V DC Voltage MPN:4Z133
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1133237
DC Gearmotor, 82 in-lb Max. Torque, 34 RPM Nameplate RPM, 90V DC Voltage
This DC gearmotor is ideal for applications requiring low-speed, high-torque operation, such as material handling, packaging, and medical equipment. With a maximum torque of 82 in-lb and a nameplate RPM of 34, it provides precise control and reliability. The permanent magnet DC motor and 101:1 gear ratio enable efficient power transmission, while the totally enclosed nonventilated motor enclosure protects against dust and moisture. Suitable for use in any orientation, this gearmotor is perfect for applications where space is limited, such as in robotics, automation, and laboratory equipment. Its compact design and high performance make it an excellent choice for a variety of industries.
Top product features:
- Totally Enclosed Nonventilated Motor Enclosure provides protection from environmental factors
- Permanent Magnet DC Motor provides high torque and efficiency
- 101:1 Gear Ratio enables high torque output at low RPM
Top product applications:
- Automotive Lifts
- Conveyor Systems
- Robotics and Automation
DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 34 RPM, Maximum Torque 82 in-lb, Overhung Load Capacity 150 lb, Rotation CW/CCW, Mounting Orientation Any Angle, Gear Ratio 101:1, Input Horsepower 1/20 hp, Output Shaft Diameter 5/8 in, Bearing Type Ball on Motor, Needle Roller and Thrust Balls on Case
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.70
- Package Width: 8.10
- Package Height: 6.40
- Package Weight: 10.00
Product info last updated on February 1, 2026 3:11am UTC
Category: Motors
