Capacitor-Start General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:6K436
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1118056

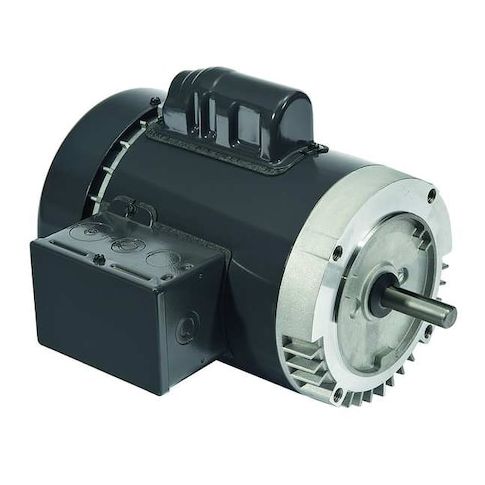

Capacitor-Start General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56C Frame
This 3/4 hp capacitor-start general purpose motor is a reliable and efficient solution for various applications. Suitable for use in 115/208-230V AC environments, it operates at a maximum speed of 1,725 RPM and features a continuous duty cycle. The motor's totally enclosed fan-cooled design ensures optimal performance in harsh conditions, while its keyed shaft design provides secure mounting. Ideal for use in manufacturing, material handling, and other industrial settings, this motor offers a cost-effective solution for applications requiring high torque and reliability. Its compact design and easy mounting make it a convenient choice for a wide range of applications.
Top product features:
- Operates at 1,725 RPM
- Totally Enclosed Fan Cooled design for improved cooling and reduced noise
- Keyed motor shaft for secure mounting and reduced vibration
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 11.0/5.4-5.5 A, 56C Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base, Motor Shaft Design Keyed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 29.44
Product info last updated on February 19, 2026 10:59pm UTC
Category: Motors
