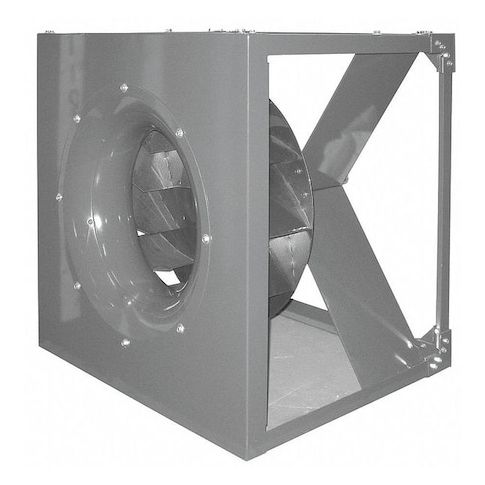

Plenum Fan, Whl Dia 22 In, w/ Dr Pkg MPN:7AL70
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1112063
Plenum Fan, Whl Dia 22 In, w/ Dr Pkg
This high-performance Plenum Fan from Dayton is designed for optimal airflow and efficiency in a variety of applications, including commercial and industrial settings. With a 22-inch wheel diameter and backward-curved design, it provides a high airflow capacity of up to 5,686 cfm at 0.000 in SP. The fan's belt drive package and unassembled design make it easy to install and integrate into existing systems. Its ability to handle high static pressures and temperatures up to 104°F makes it ideal for use in HVAC, data centers, and other environments where reliable airflow is critical.
Top product features:
- Backward-Curved Wheel Design for Efficient Airflow
- Belt Drive System for Quiet and Reliable Operation
- Maximum Static Pressure of 1 1/2 in wc for Effective Air Distribution
Top product applications:
- HVAC Systems
- Commercial Air Handling Units
- Industrial Process Ventilation Systems
Plenum Fan, Wheel Type Backward-Curved, Drive Type Belt Drive, Includes Drive Package Yes, Assembly Unassembled, Wheel Diameter 22 in, Airflow @ 0.000 in SP 5,686 cfm, Airflow @ 0.250 in SP 5,420 cfm, Airflow @ 0.500 in SP 5,154 cfm, Airflow @ 0.750 in SP 4,827 cfm, Airflow @ 1.000 in SP 4,456 cfm, Airflow @ 1.250 in SP 4,028 cfm, Airflow @ 1.500 in SP 3,527 cfm, Airflow @ 1.75 in SP 2,577 cfm, Maximum Static Pressure 1 1/2 in wc, Maximum Inlet Air Temperature 104 Degrees F
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
Product info last updated on February 18, 2026 4:19am UTC
Category: Blowers
