Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56 Frame MPN:6K484
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1106043

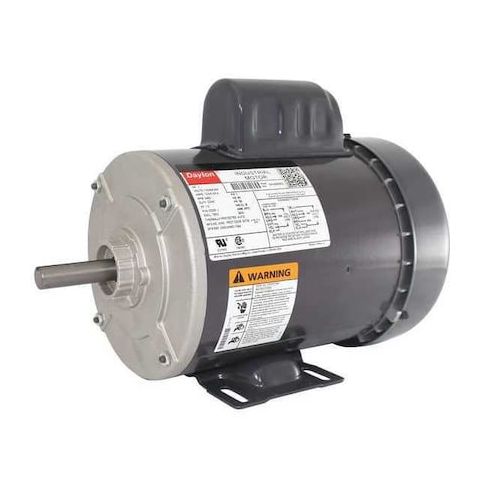

Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56 Frame
This 1 hp capacitor-start general purpose motor from Dayton is designed for a wide range of applications, including industrial and commercial settings. With a single-phase design and totally enclosed fan cooled enclosure, it provides reliable operation in various environments. The motor's 3,450 RPM nameplate speed and continuous duty cycle make it suitable for constant use, while its 56 frame size ensures compact installation. Suitable for use at 115/208-230V AC voltage, this motor is a versatile solution for applications requiring efficient and reliable power. Its compact design and robust construction make it ideal for various applications.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and heat dissipation
- Motor Shaft Rotation in both Clockwise and Counterclockwise directions for flexibility in installation
- Single Phase Motor Design with Capacitor-Start for efficient and reliable operation
Top product applications:
- Pumps
- Fans
- Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 13.6/6.9-6.8 A, 56 Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
Product info last updated on February 12, 2026 7:55pm UTC
Category: Motors
