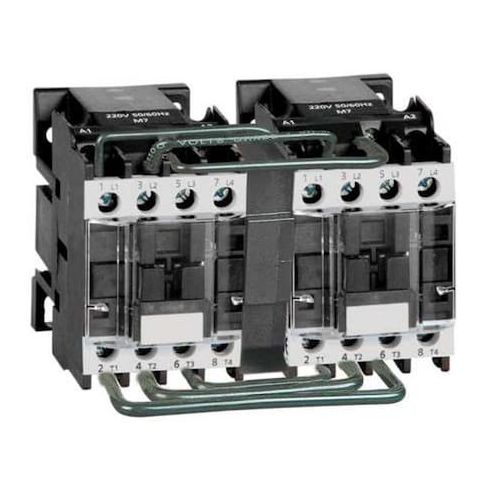

The DAYTON IEC Magnetic Contactor is a 3-pole, reversing, electrically operated switch (IEC style) with a 24 V DC coil. It incorporates one normally open auxiliary contact and uses screw terminals for wiring. The unit is designed without an enclosure.
Key features
- Action: Capable of reversing operation within specified parameters.
- Poles: 3
- Coil Voltage: 24 V DC
- Auxiliary Contacts: 1NO
- Auxiliary Contact Form: 1NO
- Terminal Connection Type: Screw
- Enclosure: Does not include an enclosure.
- Standards: IEC
- Frequency: 50/60 Hz
- Full Load Amps (Inductive): 9 A
- Full Load Current - Inductive: 9 A
- Full Load Current - Resistive: 25 A
- HP @ 1 Phase - 120V: 1/2 hp
- HP @ 1 Phase - 230V: 1 hp
- HP @ 1 Phase - 240V: 1 hp
- HP @ 3 Phase - 208V: 2 hp
- HP @ 3 Phase - 240V: 2 hp
- HP @ 3 Phase - 480V: 5 hp
- HP @ 3 Phase - 575V: 7 1/2 hp
- Dimensions: 4.13 in (W) x 4.13 in (H) x 4.68 in (D)
- Includes Auxiliary Contacts: Yes
- Reversing Capability: Reversing
- Item: IEC Magnetic Contactor
Additional Information
Country of Origin: IN
Drop Ship Item: Yes
Blind Ship Eligible: No
LTL Freight Required: No
Lead Time: Ships in 1 days
Minimum Order Quantity: 1
Unit of Measure: EA
Package Length: 6.00
Package Width: 3.50
Package Height: 7.00
Package Weight: 3.10
