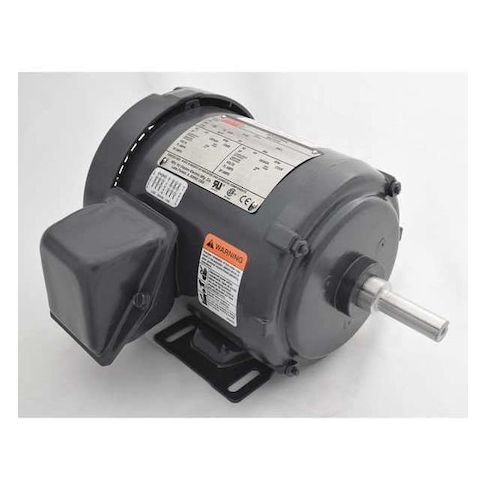

Three-Phase General Purpose Motor, 1/2 HP, 56 Frame, 208-230/460V AC Voltage, 3500 Nameplate RPM MPN:3N442
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1091106
Three-Phase General Purpose Motor, 1/2 HP, 56 Frame, 208-230/460V AC Voltage, 3500 Nameplate RPM
This 1/2 HP three-phase general purpose motor from Dayton is designed for a wide range of applications, including industrial and commercial use. Its totally enclosed fan-cooled motor enclosure provides reliable operation in harsh environments, while its 3500 nameplate RPM ensures efficient power delivery. With a maximum ambient temperature of 40 degrees C, this motor can handle demanding applications. Its continuous duty rating and 72% nominal efficiency make it an ideal choice for applications such as conveyor systems, pumps, and fans. Its compact design and rigid base mounting type make it easy to install and integrate into existing systems.
Top product features:
- Three-Phase General Purpose Motor design provides a reliable power source for industrial applications.
- Totally Enclosed Fan Cooled Motor Enclosure Design protects the motor from environmental factors and reduces maintenance needs.
- Ball Motor Bearings ensure smooth and quiet operation, extending motor lifespan and reducing wear on surrounding components.
Top product applications:
- Pump application
- Conveyor system
- Fan application
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/2 HP, Nameplate RPM 3500, Frame 56, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 1.7-1.5/0.80 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 72 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.30
- Package Width: 10.50
- Package Height: 10.90
- Package Weight: 32.00
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Product info last updated on March 6, 2026 4:59pm UTC
Category: Motors
