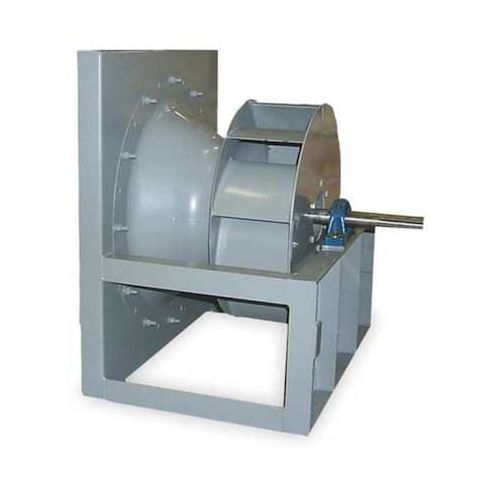

Plenum Fan, Whl Dia 22 In, w/ Dr Pkg MPN:7AL78
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1082076
Plenum Fan, Whl Dia 22 In, w/ Dr Pkg
The Dayton Plenum Fan is a high-performance, backward-curved fan designed for efficient airflow in commercial and industrial settings. With a 22-inch wheel diameter and belt drive package, this fan provides reliable operation and easy installation. Its ability to handle static pressures up to 2.5 inches WC makes it suitable for applications such as data centers, server rooms, and high-velocity systems. The fan's airflow rates range from 6,179 to 7,077 CFM, making it an ideal choice for projects requiring precise control over airflow and pressure. Its compact size and easy installation make it a versatile solution for a variety of applications.
Top product features:
- Backward-Curved Wheel Design for High Airflow Efficiency
- Belt Drive Type for Smooth and Quiet Operation
- Maximum Static Pressure of 2 1/2 in wc for Effective Air Circulation
Top product applications:
- Data Centers
- Commercial Buildings
- Industrial Facilities
Plenum Fan, Wheel Type Backward-Curved, Drive Type Belt Drive, Includes Drive Package Yes, Assembly Unassembled, Wheel Diameter 22 in, Airflow @ 0.000 in SP 7,077 cfm, Airflow @ 0.250 in SP 6,863 cfm, Airflow @ 0.500 in SP 6,649 cfm, Airflow @ 0.750 in SP 6,435 cfm, Airflow @ 1.000 in SP 6,179 cfm, Airflow @ 1.250 in SP 5,913 cfm, Airflow @ 1.500 in SP 5,614 cfm, Airflow @ 1.75 in SP 5,269 cfm, Airflow @ 2.000 in SP 4,912 cfm, Airflow @ 2.500 in SP 3,990 cfm, Maximum Static Pressure 2 1/2 in wc
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
