GP Mtr, Split Ph, ODP, 1/3 HP, 1140 rpm, 56 MPN:6XH74
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1075541

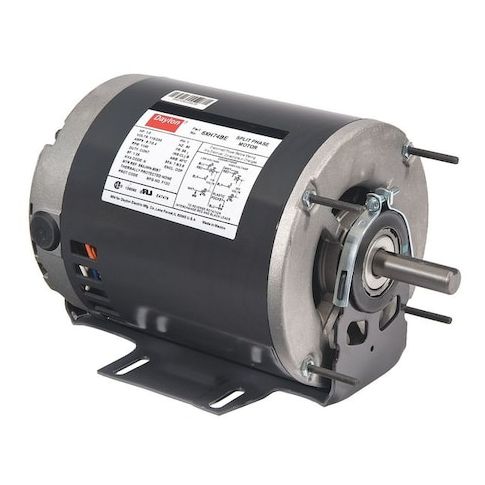

GP Mtr, Split Ph, ODP, 1/3 HP, 1140 rpm, 56
The Dayton General Purpose Motor is a versatile and reliable solution for a wide range of applications. Suitable for use in various industries, including manufacturing, HVAC, and food processing, this motor provides continuous duty operation in environments up to 40°C. With a 1/3 horsepower rating and 1140 RPM, it delivers efficient power and performance. Its open drip-proof design and keyed shaft ensure easy installation and maintenance. The motor's compact 56 frame size makes it ideal for space-constrained applications. Its 1.35 service factor and Class B insulation ensure long-lasting operation and reduced downtime.
Top product features:
- Split-Phase design for efficient power delivery
- Continuous duty cycle for uninterrupted operation
- Open Drip Proof enclosure for protection against dust and moisture
Top product applications:
- Pump and water treatment applications due to its ability to handle continuous duty cycles and operate at a low horsepower
- Fans and blowers for HVAC and industrial ventilation systems due to its single-phase design and high RPM
- Industrial machinery and equipment such as conveyor belts and textile machinery due to its open drip-proof enclosure and keyed shaft design
General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/3 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6.7/3.4 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Keyed, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.30
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 23.85
Product info last updated on February 1, 2026 8:14am UTC
Category: Motors
