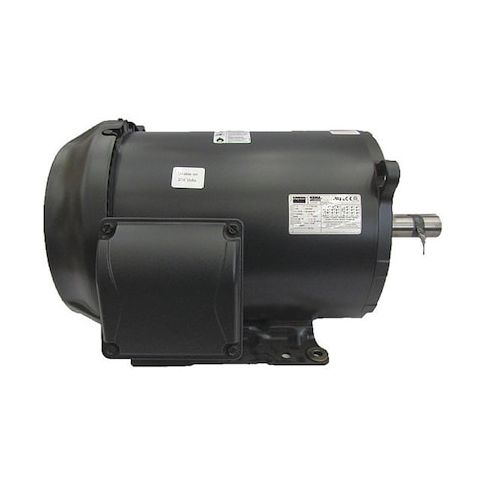

Three-Phase General Purpose Motor, 7 1/2 HP, 254/6U Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM MPN:2N938
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1073782
Three-Phase General Purpose Motor, 7 1/2 HP, 254/6U Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM
This 7 1/2 HP three-phase general purpose motor is designed for demanding applications that require high performance and reliability. With a nameplate RPM of 1,770 and a nominal efficiency of 91.7 percent, this motor is ideal for continuous duty use in industrial settings. Its totally enclosed fan cooled design and ball bearings ensure long-lasting operation and reduced maintenance. Suitable for a wide range of applications, including pumps, fans, and conveyor systems, this motor offers a cost-effective solution for businesses seeking to optimize their productivity and efficiency. Its compact 254/6U frame makes it easy to integrate into existing systems.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reliable cooling
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Pumps and fans in industrial settings
- Centrifugal compressors and air compressors
- Industrial conveyor systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1,770, Frame 254/6U, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 18.4/9.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.00
- Package Width: 22.00
- Package Height: 18.00
- Package Weight: 223.40
Product info last updated on January 27, 2026 9:36am UTC
Category: Motors
