Washdown Motor, 3 Ph, TENV, 1/3 HP, 1725 rpm MPN:1TTB1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1069336

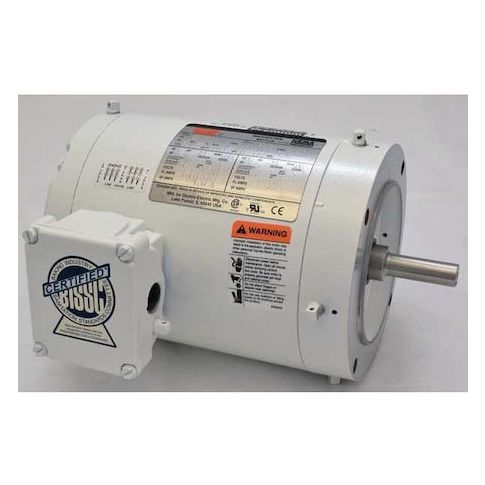

Washdown Motor, 3 Ph, TENV, 1/3 HP, 1725 rpm
This 1/3 HP, three-phase washdown motor from Dayton is designed for use in harsh environments where high-pressure washdowns are frequent. Its totally enclosed non-ventilated (TENV) design and epoxy-coated finish protect against corrosion and moisture, making it ideal for applications in food processing, pharmaceutical, and chemical industries. The motor's continuous duty cycle and NEMA Design B rating ensure reliable operation in demanding situations. With a compact 56C frame and a range of voltage options, this motor is a versatile solution for various applications, including conveyor systems, pumps, and mixers, where efficient and durable performance is critical.
Top product features:
- Three-Phase design for efficient power handling
- Totally Enclosed Non-Ventilated (TENV) enclosure for dust and moisture protection
- Continuous duty cycle for reliable operation in demanding applications
Top product applications:
- Food Processing Equipment
- Cleaning and sanitizing equipment in food processing facilities
- High-humidity environments such as breweries and wineries
Washdown Motor, Three Phase, Motor Design Three-Phase, 1/3 hp HP, Nameplate RPM 1,765 RPM, Voltage 230/460V AC, Full Load Amps 1.5/0.7 A, 56C Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Motor Mounting Position Horizontal, Motor Frame Material Steel, Finish Epoxy-Coated
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 11.40
- Package Height: 10.70
- Package Weight: 22.53
