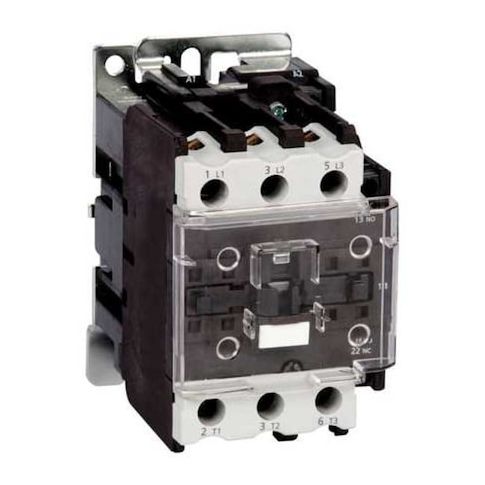

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing MPN:6EAR0
Free Shipping
In Stock
The DAYTON IEC Magnetic Contactor is a reliable and efficient 3-pole switching device designed for use in IEC-based systems. Operating at 24V AC, it provides seamless control and switching capabilities for various applications. With 1NO/1NC auxiliary contacts, this device offers flexibility and versatility in industrial control systems. Suitable for non-reversing applications, it is ideal for use in HVAC, manufacturing, and other industrial settings where precise control is essential. Its compact design and high amp ratings make it an excellent choice for a wide range of applications, including motor control, lighting, and other electrical systems.
Top product features:
- The DAYTON IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switching device.
- It operates with a 24 V AC coil.
- The unit includes auxiliary contacts configured as 1NO/1NC.
Top product applications:
- Motor Control Systems
- Industrial Automation
- Power Distribution Systems
The DAYTON IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switching device rated for use in IEC-based systems within specified parameters. It operates with a 24 V AC coil
- auxiliary contacts are configured as 1NO/1NC. The unit does not include surge suppression features and is available without an enclosure.
- Coil Voltage: 24 V AC
- - Poles: 3
- - Action / Reversing: Non-Reversing
- - Auxiliary Contacts: 2 (1NO/1NC)
- - Includes Auxiliary Contacts: Yes
- - Auxiliary Contact Configuration: 1NO/1NC
- - Auxiliary Contact Form: 1NC/1NO
- - Embedded Surge Suppressor: Does not include surge suppression features
- - Enclosure: Available without an enclosure
- - Frequency: 50/60 Hz
- - Full Load Amps (Inductive/Resistive): 50 A / 70 A
- - Full Load Current (Inductive/Resistive): 50 A / 70 A
- - HP @ Various Voltages (single/three-phase as listed): 3 hp @ 120V
- 7-1/2 hp @ 230V
- 7-1/2 hp @ 240V
- 15 hp @ 208V
- 15 hp @ 240V
- 40 hp @ 480V
- 40 hp @ 575V
- - Standards: CSA, UL Listed
- - Dimensions: approximately 4.6 inches deep, 2.95 inches high, and 2.95 inches wide
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 5.20
- Package Height: 3.60
- Package Weight: 1.40
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
