Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 56H Frame MPN:5UKF9
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1039787
Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 56H Frame

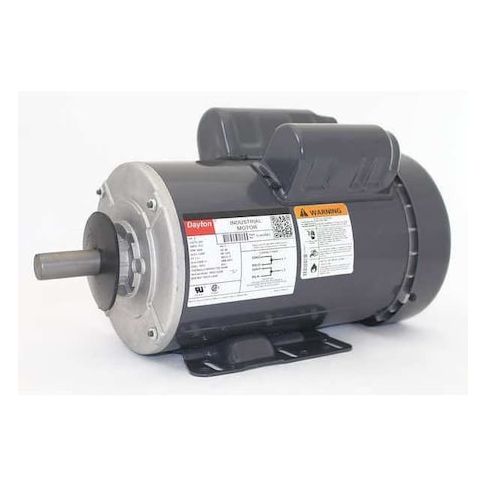

This 1.5 hp single-phase motor from Dayton is designed for general purpose use and features a capacitor-start/run design for efficient operation. Suitable for a wide range of applications, it's ideal for use in industrial settings, such as manufacturing facilities, warehouses, and assembly lines. The motor's totally enclosed fan-cooled design provides reliable performance in high-temperature environments, while its rigid base mounting type ensures secure installation. With a continuous duty cycle and 1.15 service factor, this motor is built to last and provides a cost-effective solution for your power needs.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability and reduced maintenance
- Single Phase, Motor Design Capacitor-Start/Run for efficient and reliable operation
- Continuous Duty Cycle capability for uninterrupted performance in demanding applications
Top product applications:
- Pumps
- Fans
- Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.6/8.1-7.4 A, 56H Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 5, 2026 5:53am UTC
Category: Motors
