Blade, Fan, 24 In, 3/4 HP, Rotation: CW MPN:4C902
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1029646

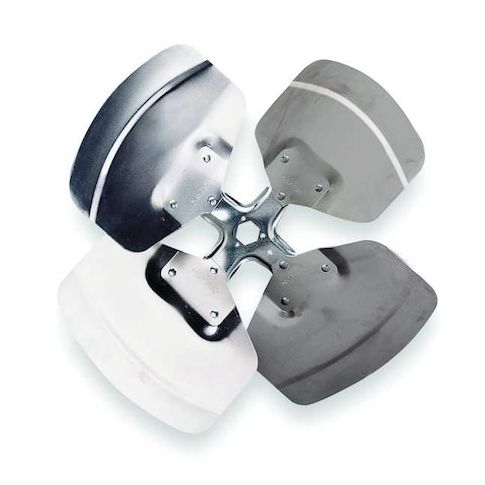

Blade, Fan, 24 In, 3/4 HP, Rotation: CW
This high-performance fan blade is designed for use with air conditioning condensers, heat exchangers, and unit heaters, as well as heat pumps. Its 24-inch propeller diameter and 27-degree pitch provide efficient airflow, with a maximum RPM of 1,140 and a CFM of 6,360 at 0.000-inch static pressure. The fan's aluminum propeller and galvanized steel spiders ensure durability and resistance to corrosion. With a 3/4 horsepower motor and CW rotation, this fan blade is ideal for a variety of commercial and industrial applications, offering improved cooling and ventilation performance while minimizing energy consumption and maintenance costs.
Top product features:
- 24 In propeller diameter
- Moves 6,360 cfm of air at 0.000-In. static pressure
- Moves 5,277 cfm of air at 0.300-In. static pressure
Top product applications:
- Air Conditioning Condensers
- Heat Exchangers
- Unit Heaters
Fan Blade, Propeller Dia. (In.) 24 in, CFM @ 0.000-In. SP 6,360 cfm, CFM @ 0.300-In. SP 5,277 cfm, Min. HP 3/4 hp, Max. RPM 1,140 RPM, Pitch (Deg.) 27 Degrees , CW Rotation, Number of Blades 4, Propeller Material Aluminum, Galvalume(R) Steel Spiders, For Use With Air Conditioning Condensers, Heat Exchangers and Unit Heaters, Heat Pumps, Requires Interchangeable Hex Hub 2A563 or 2A564 or 2A565
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 25.90
- Package Width: 25.90
- Package Height: 5.30
- Package Weight: 3.45
Product info last updated on April 7, 2026 9:56am UTC
Category: Fans
