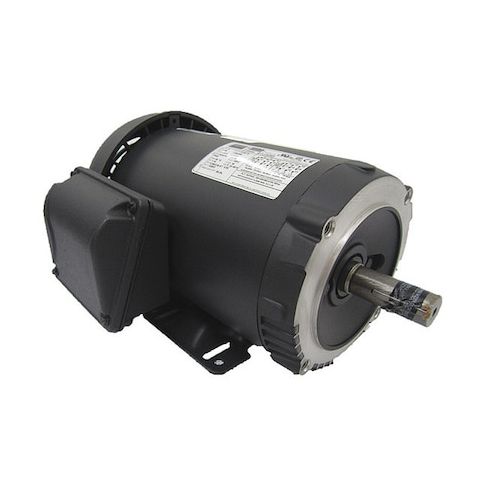

Three-Phase General Purpose Motor, 2 HP, 143/5TC Frame, 230/460V AC Voltage, 3505 Nameplate RPM MPN:4TJA8
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1028781
Three-Phase General Purpose Motor, 2 HP, 143/5TC Frame, 230/460V AC Voltage, 3505 Nameplate RPM
This three-phase general purpose motor from Dayton is a reliable and efficient solution for a variety of industrial applications. With a 2 HP rating and 3505 nameplate RPM, it provides consistent performance in demanding environments. The totally enclosed fan-cooled design ensures quiet operation and long motor life. Suitable for continuous duty in temperatures up to 40°C, this motor is ideal for use in manufacturing, processing, and other industrial settings where high torque and reliability are essential. Its compact size and easy mounting make it a convenient choice for equipment builders and system integrators.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design provides a safe and efficient cooling system for the motor.
- Ball Motor Bearings ensure smooth and reliable operation of the motor.
- CW/CCW Motor Shaft Rotation allows for flexibility in application design and installation.
Top product applications:
- Industrial conveyor systems
- Pumps and compressors
- Fans and blowers
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 3505, Frame 143/5TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.1/2.6 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.75
- Package Width: 18.25
- Package Height: 12.25
- Package Weight: 46.00
