Brake, End Mount Disc, Torque 10 F.-Lb MPN:5URA6
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1014657

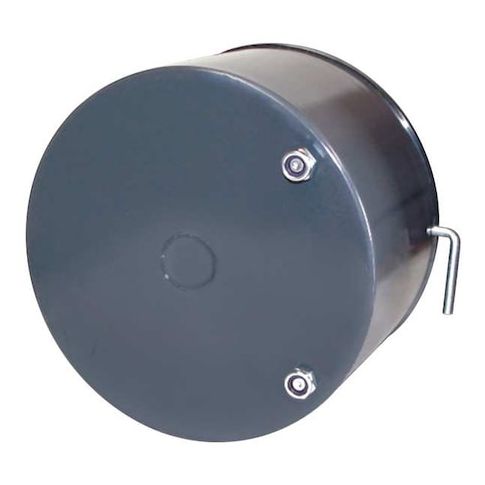

Brake, End Mount Disc, Torque 10 F.-Lb
The Dayton End Mount Disc Brake is a reliable and efficient solution for applications requiring precise control and smooth operation. Suitable for use with 56C motor flanges, this brake offers a static torque of 10 ft-lb and operates at 208-230/460V AC. Its compact design and continuous duty capability make it ideal for a variety of applications, including machine tools, conveyor systems, and packaging equipment. With a maximum speed of 3,600 RPM and a horsepower rating of 1 hp at 3450 RPM, this brake provides precise control and reliable performance in demanding industrial environments.
Top product features:
- End Mount Disc design allows for easy installation on a 56C motor flange
- Operates at 3,600 RPM maximum speed
- Provides continuous duty operation
Top product applications:
- Machine tool spindle
- Automotive applications
- Industrial conveyor systems
Brake, Clutch/Brake Type End Mount Disc, Coil Voltage 115/208-230V AC, Operating Voltage 208-230/460V AC, Enclosure Type Dripproof, Static Torque 10 ft-lb, Horsepower @ RPM 1 hp @ 3450 RPM, 1/2 hp @ 1725 RPM, Shaft Diameter 5/8 in, Maximum Speed 3,600 RPM, Mounting Location 56C Motor Flange, Includes Brake and Instruction Manual, Continuous Duty Yes, Outside Diameter 6.5 in, Overall Length 4 in, Overall Width Not Applicable, Phase Single, Service Factor 1.4
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.60
- Package Width: 7.60
- Package Height: 8.60
- Package Weight: 7.52
Product info last updated on March 18, 2026 5:37am UTC
Category: Motors
