Agricultural Fan Motor, Capacitor-Start/Run, 3/4 HP, 115/208-230V AC, 1, 725 Nameplate RPM, 56 Frame MPN:4WNZ5
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0993386

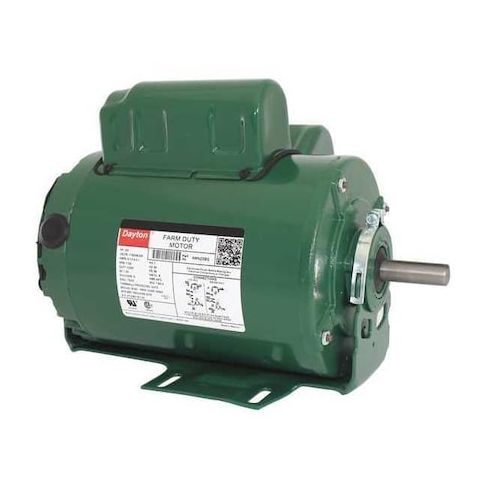

Agricultural Fan Motor, Capacitor-Start/Run, 3/4 HP, 115/208-230V AC, 1, 725 Nameplate RPM, 56 Frame
This 3/4 HP agricultural fan motor is designed for farm duty applications, providing reliable performance in harsh environments. With a single-phase, capacitor-start/run design, it delivers efficient operation and long motor life. The motor's 1,725 nameplate RPM and 56 frame size make it suitable for a variety of applications, including ventilation systems, grain dryers, and other agricultural equipment. Its totally enclosed air-over design and cradle base mounting ensure durability and easy installation. Ideal for continuous duty cycles, this motor is perfect for farms, ranches, and agricultural businesses seeking a reliable and efficient solution for their ventilation needs.
Top product features:
- Capacitor-start/run design provides improved starting and running efficiency
- Totally enclosed air-over motor enclosure protects against dust and moisture
- Continuous duty cycle allows for uninterrupted operation
Top product applications:
- Drying barns and silos
- Ventilation for animal housing
- Agricultural drying applications
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.1/3.4-3.1 A, 56 Frame, 60 Hz Hz, Motor Service Factor 1.3, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 40.50
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 14, 2026 8:49pm UTC
Category: Motors
