Washdown Motor, 3 Ph, TEFC, 1 HP, 1165 rpm MPN:6WY36
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0971521

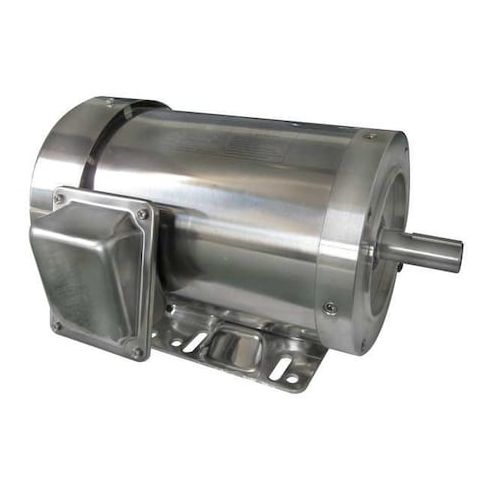

Washdown Motor, 3 Ph, TEFC, 1 HP, 1165 rpm
This 1 HP, 3-phase washdown motor from Dayton is designed for high-temperature and high-humidity applications, such as food processing and pharmaceutical manufacturing. Its totally enclosed fan-cooled (TEFC) design and Class F insulation ensure reliable operation in harsh environments. The motor's continuous duty cycle and NEMA Design B rating make it suitable for demanding applications, while its compact size and lightweight design facilitate easy installation and maintenance. With a wide speed range and multiple voltage options, this motor is a versatile solution for various industrial applications, including conveyor systems, pumps, and mixers.
Top product features:
- Three-phase operation
- Totally Enclosed Fan Cooled (TEFC) design
- Continuous duty cycle
Top product applications:
- Food Processing Equipment
- Chemical Processing Equipment
- Pharmaceutical Manufacturing Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,165 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.0/2.0 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.10
- Package Width: 11.40
- Package Height: 10.20
- Package Weight: 46.65
Product info last updated on March 13, 2026 5:52pm UTC
Category: Motors
