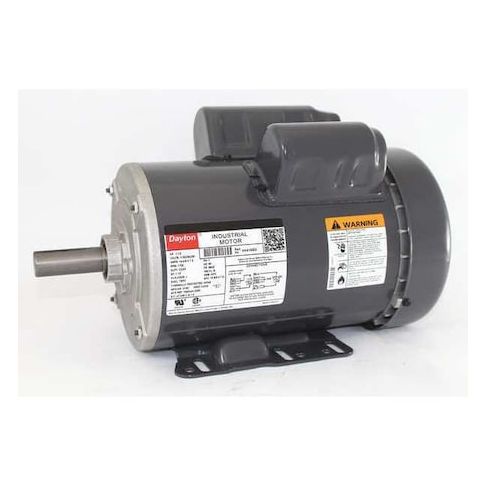

Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 56HZ Frame MPN:6K419
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0959305
Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 56HZ Frame
This 1.5 HP single-phase motor is designed for general purpose applications and features a capacitor-start/run design for efficient operation. Suitable for use in a variety of settings, including industrial and commercial environments, it operates at 1,725 RPM and can handle continuous duty cycles. The motor is totally enclosed fan cooled for durability and has a service factor of 1.15. Its compact size and rigid base make it easy to integrate into existing systems. This motor is ideal for applications such as pumps, fans, and conveyor systems, and is also suitable for use in areas with limited space and high ambient temperatures.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability and reduced maintenance
- Single Phase, Motor Design Capacitor-Start/Run for efficient and reliable operation
- Continuous Duty Cycle for long-term, uninterrupted operation
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.4/8-7.2 A, 56HZ Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 20, 2026 9:48am UTC
Category: Motors
