HVAC Motor, 1/50 HP, 1550 rpm, 115V, 3.3 MPN:71637656M
HVAC Motor, 1/50 HP, 1550 rpm, 115V, 3.3

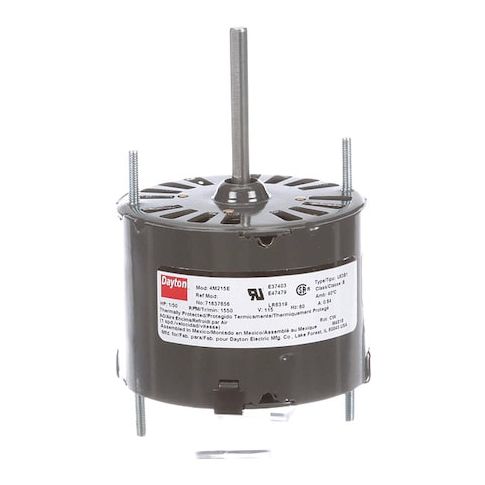

This compact 1/50 HP HVAC motor is designed for efficient operation in a variety of applications, including residential and commercial heating and cooling systems. Its 115V single-phase design and 1550 rpm make it suitable for use in small to medium-sized HVAC systems. The motor's shaded pole design and continuous duty cycle ensure reliable performance in demanding environments. Its compact size and low weight make it easy to install and maintain, while its steel frame and open air design provide excellent heat dissipation. Ideal for use in applications such as fan motors, air handlers, and rooftop units.
Top product features:
- Single Phase operation
- Shaded Pole motor design
- Continuous duty cycle
Top product applications:
- HVAC Fan Motor
- Air Purification System Motor
- Small Air Handling Unit Motor
HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/50 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 0.84 A Full Load Amps, 3.3 Frame, Output Watts 15 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.50
- Package Width: 3.62
- Package Height: 3.62
- Package Weight: 6.01
