Speed Reducer, C-Face, 56C, 20:1 MPN:4RP17
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0939985

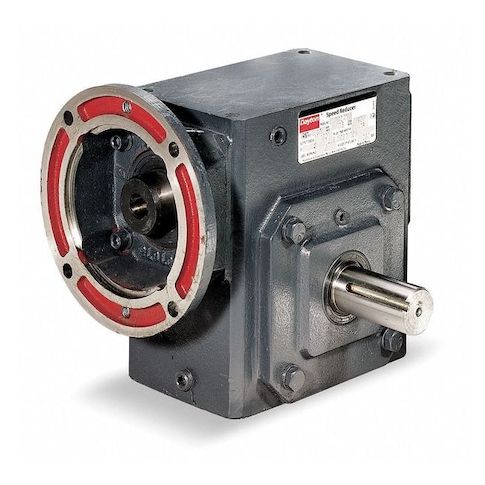

Speed Reducer, C-Face, 56C, 20:1
The Dayton Speed Reducer is a reliable and efficient solution for various applications requiring speed reduction. Its C-Face input connection and keyed output shaft make it easy to integrate with motors, while its worm gear type provides a high gear ratio of 20:1. With a maximum output speed of 88 RPM and a maximum output torque of 586 in-lb, this speed reducer is ideal for applications such as conveyor systems, packaging machinery, and material handling equipment. Its durable cast iron housing and hardened steel gear material ensure long-lasting performance and withstands overhung loads of up to 150 lb.
Top product features:
- Input Connection Type C-Face
- Output Shaft Type Keyed
- Maximum Output Speed 88 RPM
Top product applications:
- Speed Reducer
- Worm gear type speed reducers are often used in applications where high torque is required at low speeds.
- High torque applications often include conveyor systems, mixers, and pumps.
Speed Reducer, Input Connection Type C-Face, Gear Type Worm, Output Shaft Type Keyed, Maximum Output Speed 88 RPM, Motor Frame Designation 56C, Worm Center Distance 2.06 in, Gear Ratio 20:1, Rotation CW/CCW, Maximum Input Horsepower 1 hp, Maximum Output Torque 586 in-lb, Overhung Load Capacity 150 lb, Mounting Orientation Any Angle, Housing Material Cast Iron, Application Speed Reducer, Bearing Type Ball, Tapered Roller, Gear Material Hardened Steel, Manganese Bronze
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.10
- Package Width: 10.20
- Package Height: 10.20
- Package Weight: 28.00
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Product info last updated on January 22, 2026 1:09pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
