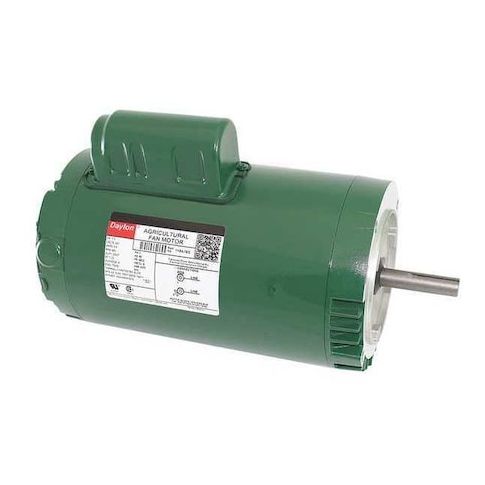

Agricultural Fan Motor, Permanent Split Capacitor, 1 HP, 230V AC, 850 Nameplate RPM, 56CZ Frame MPN:1YBA7BG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0918547
Agricultural Fan Motor, Permanent Split Capacitor, 1 HP, 230V AC, 850 Nameplate RPM, 56CZ Frame
This Dayton Agricultural Fan Motor is a reliable and efficient solution for agricultural applications. Its permanent split capacitor design provides consistent performance and long motor life. With a 1 HP rating and 230V AC operation, it's suitable for a variety of uses, including ventilation, drying, and cooling systems. The motor's continuous duty cycle and 850 RPM nameplate speed make it ideal for demanding farm environments. Its totally enclosed air-over design protects the motor from dust and debris, extending its lifespan. This motor is perfect for farmers, ranchers, and agricultural businesses looking for a reliable and durable fan motor solution.
Top product features:
- Permanent Split Capacitor design
- Single Phase operation
- Totally Enclosed Air-Over motor enclosure
Top product applications:
- Agricultural ventilation systems
- Drying and curing applications in agriculture
- Farm equipment and machinery ventilation
Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 5.8 A, 56CZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type C-Face, Motor Mounting Position All Angle, Motor Frame Material Steel, Finish Green
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
Product info last updated on March 18, 2026 9:42pm UTC
Category: Motors
