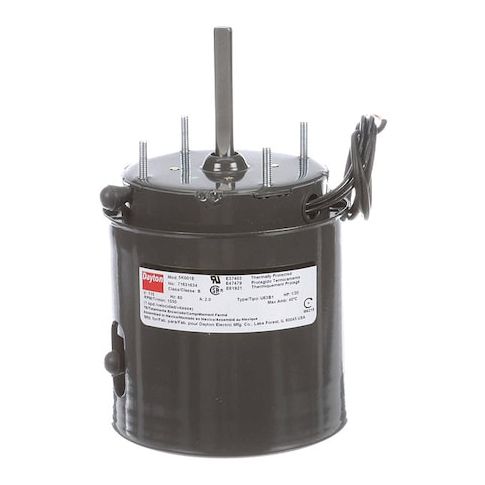

HVAC Motor, 1/20 HP, 1550 rpm, 115V, 3.3 MPN:71631634M
HVAC Motor, 1/20 HP, 1550 rpm, 115V, 3.3
This 1/20 HP HVAC motor from Dayton is a reliable and efficient solution for a wide range of applications. Suitable for use in residential and commercial settings, it operates at 115V and 1550 rpm, providing a continuous duty cycle in temperatures up to 40 degrees C. The motor's shaded pole design and totally enclosed fan cooled (TEFC) enclosure ensure optimal performance and protection from the environment. With its compact size and lightweight design, this motor is ideal for use in air handlers, fan coils, and other HVAC systems, providing a quiet and efficient operation.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and efficient cooling system for the motor.
- Motor Shaft Rotation is in a clockwise direction, allowing for easy integration with existing systems.
- Shaded Pole motor design provides a reliable and efficient operation for HVAC applications.
Top product applications:
- HVAC systems for small residential or commercial spaces
- Fans and blowers for industrial or commercial applications
- Air purification systems for residential or commercial use
HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/20 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 2.0 A Full Load Amps, 3.3 Frame, Output Watts 37 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Stud
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.12
- Package Width: 4.00
- Package Height: 4.00
- Package Weight: 7.37
