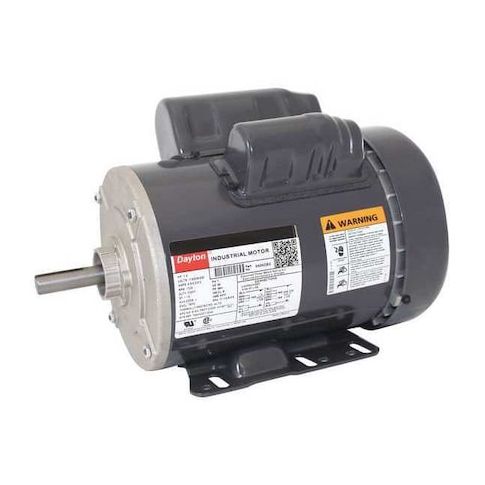

Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56H Frame
This reliable 1 hp Capacitor-Start/Run General Purpose Motor is designed for a wide range of applications, including industrial equipment, pumps, and conveyor systems. With its single-phase design and totally enclosed fan-cooled enclosure, it operates efficiently in various environments. The motor's 1,725 RPM nameplate speed and 1.15 service factor ensure reliable performance under continuous duty cycles. Its compact 56H frame and rigid base mounting make it easy to integrate into existing systems. Suitable for use at 115/208-230V AC, this motor is an ideal solution for applications requiring a reliable and efficient motor solution.
Top product features:
- Capacitor-start/run design provides efficient starting and operation
- Totally enclosed fan-cooled design protects against dust and moisture
- Continuous duty cycle allows for uninterrupted operation
Top product applications:
- Industrial conveyor systems
- Pumps and water treatment equipment
- Fans and blowers for commercial and industrial use
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 9.9/5.2-5 A, 56H Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 40.00
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
