Washdown Motor, 3 Ph, TENV, 3/4 HP, 1745 rpm MPN:6WY34
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0881614

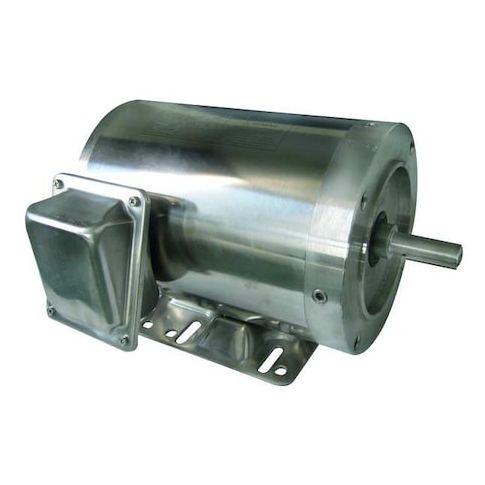

Washdown Motor, 3 Ph, TENV, 3/4 HP, 1745 rpm
This 3-phase, totally enclosed non-ventilated (TENV) washdown motor from Dayton is designed for harsh environments and demanding applications. With a 3/4 horsepower rating and 1745 rpm, it provides reliable power for continuous operation. Suitable for use at 208V, this motor is ideal for applications in food processing, chemical plants, and other industries where washdown is required. Its NEMA Design B rating ensures compliance with industry standards, and its 1.15 service factor provides additional capacity for peak loads. With a compact design and durable construction, this motor is a reliable choice for heavy-duty applications.
Top product features:
- Three-phase operation provides power to the motor.
- Totally Enclosed Non-Ventilated (TENV) design protects the motor from environmental contaminants.
- Continuous duty cycle allows the motor to operate without interruption.
Top product applications:
- Cleanroom environments
- Food processing facilities
- Pharmaceutical manufacturing plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 2.3-2.2/1.1 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.70
- Package Width: 11.40
- Package Height: 10.20
- Package Weight: 35.95
Product info last updated on January 27, 2026 8:40pm UTC
Category: Motors
