Capacitor-Start/Run General Purpose Motor, 3 hp HP, 115/230V AC Voltage, 215 Frame MPN:5K483
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0831022

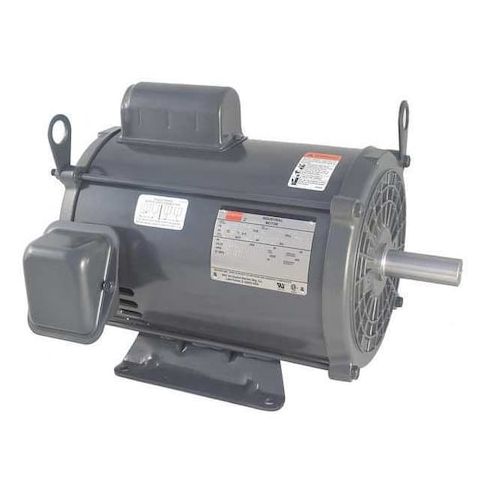

Capacitor-Start/Run General Purpose Motor, 3 hp HP, 115/230V AC Voltage, 215 Frame
This 3 horsepower, 115/230V AC voltage capacitor-start/run general purpose motor is designed for a wide range of applications, including industrial and commercial use. Its high efficiency and reliability make it ideal for continuous duty cycles in environments up to 40°C. The motor's open drip-proof enclosure provides protection against dust and water, while its rigid base mounting allows for all-angle positioning. Suitable for use in a variety of settings, including manufacturing facilities, warehouses, and offices, this motor is a reliable choice for applications requiring a high level of performance and durability.
Top product features:
- Capacitor-start/run design for improved motor efficiency
- Single phase operation for versatility in applications
- Open drip-proof enclosure design for protection against dust and water
Top product applications:
- Pumps and water treatment systems
- Fans and blowers for industrial applications
- Compressors and air handling systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 35.6/17.8 A, 215 Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Inverter Rated Not Inverter Rated
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.80
- Package Width: 15.30
- Package Height: 13.10
- Package Weight: 72.00
Product info last updated on April 3, 2026 10:28pm UTC
Category: Motors
