Capacitor-Start Belt Drive Motor, 3/4 HP, 56 Frame, 115/208-230V AC Voltage, 1, 725 Nameplate RPM MPN:4VAG7
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0824144

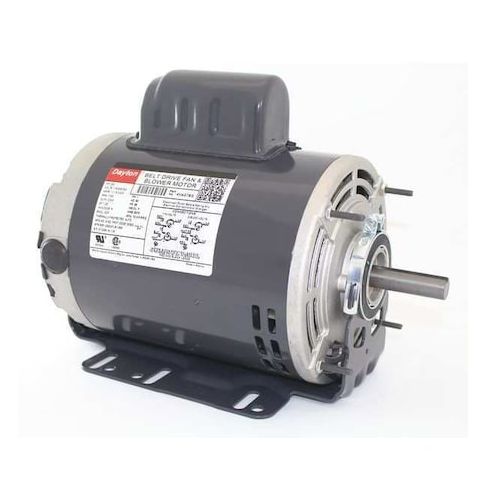

Capacitor-Start Belt Drive Motor, 3/4 HP, 56 Frame, 115/208-230V AC Voltage, 1, 725 Nameplate RPM
This 3/4 HP, 56 frame motor is a reliable and efficient solution for a wide range of applications, including fans and blowers. Its capacitor-start design provides a high starting torque, making it ideal for applications that require a strong initial push. The motor's continuous duty cycle and 1.25 service factor ensure it can handle demanding tasks. With a nameplate RPM of 1,725, it's perfect for applications that require a high-speed operation. Its compact size and open drip-proof design make it easy to install and maintain, making it a great choice for industrial and commercial use.
Top product features:
- Capacitor-start design for efficient starting and reduced power consumption
- Single-phase operation for compatibility with standard household electrical systems
- Open drip-proof enclosure for protection against dust and moisture exposure
Top product applications:
- HVAC Systems
- Air Conditioning Units
- Industrial Ventilation Systems
Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 11.1/5.5-5.5 A Full Load Amps, 56 Frame, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel, Motor Mounting Position All Angle
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.30
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 32.50
Product info last updated on January 29, 2026 2:16pm UTC
Category: Motors
