Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 48 Frame MPN:6K482
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0821231

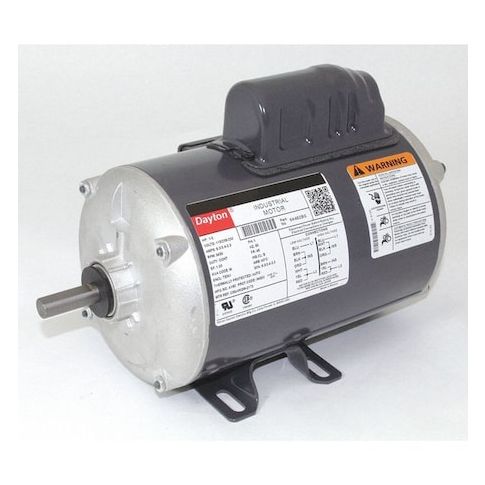

Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 48 Frame
This 1/2 hp general purpose motor from Dayton is designed for a wide range of applications, including industrial and commercial use. Its capacitor-start design provides efficient and reliable operation, while its totally enclosed non-ventilated (TEFC) enclosure protects against dust and moisture. With a continuous duty cycle and thermal protection, this motor can handle demanding tasks. Suitable for use at 115/208-230V AC, it's ideal for applications such as conveyor systems, pumps, and fans. Its compact size and rigid base make it easy to mount and integrate into existing systems.
Top product features:
- Capacitor-start design allows for efficient and reliable operation
- Totally enclosed non-ventilated design protects against dust and moisture
- Continuous duty cycle enables non-stop operation
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.3/3.4-3.3 A, 48 Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.30
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 20.00
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on March 20, 2026 8:50pm UTC
Category: Motors
