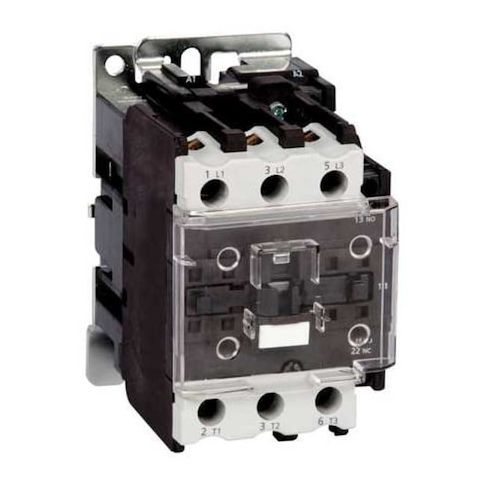

IEC Magnetic Contactor, 1NC/1NO, 240V AC, 3 P, Non-Reversing, Screw MPN:6EAR5
Free Shipping
In Stock
The DAYTON IEC Magnetic Contactor is a reliable and efficient switching device designed for controlling power circuits within IEC standards. Its 3-pole, non-reversing configuration and 240V AC coil make it ideal for applications such as motor control, HVAC, and lighting systems. With two auxiliary contacts and screw terminals, this compact unit offers easy installation and flexibility. Suitable for use in a variety of industries, including commercial and industrial settings, the DAYTON IEC Magnetic Contactor provides reliable and efficient control while meeting international safety standards. Its compact design and robust features make it a great choice for applications requiring precise control.
Top product features:
- Action: Non-Reversing
- Poles: 3
- Coil voltage: 240 V AC
Top product applications:
- Control of 3-phase AC motors
- Control of 3-phase AC relays
- Control of 3-phase AC contactors
The DAYTON IEC Magnetic Contactor is an electrically operated switching device rated for operation within IEC standards. It is a 3-pole, non-reversing contactor with a 240 V AC coil intended for controlling power circuits within specified parameters. This unit includes two auxiliary contacts (1 NO / 1 NC) and has screw terminals. It does not include an embedded surge suppressor or enclosure, and is designed for operation at 50/60 Hz frequencies with compact dimensions.
Key features
- - Action: Non-Reversing
- - Poles: 3
- - Auxiliary contacts: 2 total (1 NO, 1 NC)
- - Coil voltage: 240 V AC
- - Contactor style: IEC
- - Terminal connection: Screw terminals
- - Enclosure: Not included
- - Frequency: 50/60 Hz
- - Full-Load Amps: Inductive 65 A
- Resistive 80 A
- - HP ratings (selected): 5 hp at 120 V single-phase
- 10 hp at 230/240 V single-phase
- 20 hp at 208/240 V three-phase
- 50 hp at 480/575 V three-phase
- - Standards: CSA, UL Listed
- - Dimensions (approx.): Depth 4.6 in
- Height 2.95 in
- Width 2.95 in
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.90
- Package Width: 5.20
- Package Height: 3.50
- Package Weight: 1.95
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
