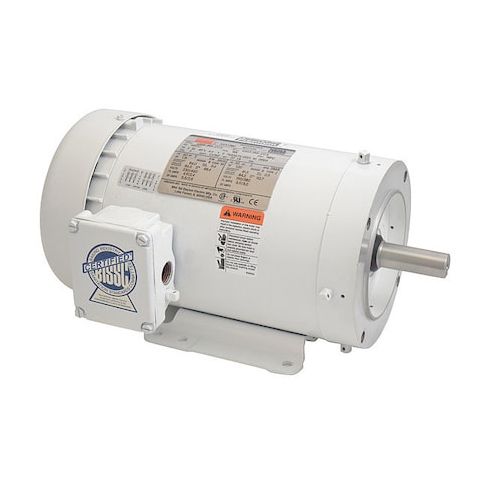

Washdown Motor, 3 Ph, TEFC, 2 HP, 3505 RPM
This 2 HP, 3-phase washdown motor from Dayton is designed for harsh environments, featuring a totally enclosed fan-cooled (TEFC) design and a steel frame for durability. With a high service factor of 1.15, it can handle demanding applications while maintaining efficiency. Suitable for use in food processing, pharmaceutical, and other industries where cleanliness is critical, this motor's CW/CCW rotation and rigid base mounting make it easy to integrate into existing systems. Its compact size and lightweight design also make it ideal for applications with limited space or weight constraints, ensuring maximum productivity and efficiency in a variety of washdown applications.
Top product features:
- Three Phase Design
- Totally Enclosed Fan Cooled Enclosure
- RPM of 3505
Top product applications:
- Pump and motor drive applications requiring a 2 HP motor
- High-pressure washdown systems for industrial cleaning
- Food processing equipment and machinery that require a durable and washdown-resistant motor
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 3,505 RPM, Voltage 230/460V AC, Full Load Amps 4.9/2.4 A, 145TC Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel, Endshield Material Aluminum
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 11.50
- Package Height: 11.00
- Package Weight: 46.22
