Washdown Motor, 3 Ph, TEFC, 1 HP, 1165 rpm MPN:6WY56
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0767462

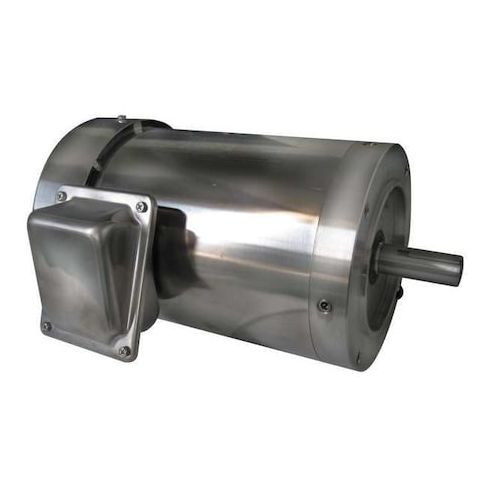

Washdown Motor, 3 Ph, TEFC, 1 HP, 1165 rpm
This 1 HP, 3-phase washdown motor from Dayton is designed for use in harsh environments where high sanitation standards are required. Its totally enclosed fan-cooled (TEFC) design and NEMA Design B rating ensure reliable operation even in extreme temperatures and humidities. Ideal for applications in food and beverage processing, pharmaceuticals, and other industries where cleanliness is paramount, this motor provides continuous duty cycle operation and is usable at 208V. Its compact size and lightweight design make it easy to integrate into existing systems, providing a cost-effective solution for washdown applications.
Top product features:
- Three-phase operation
- Totally Enclosed Fan Cooled design
- Continuous duty cycle
Top product applications:
- Food Processing
- Pumps and other equipment in harsh environments
- Industrial laundry equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,165 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.0/2.0 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.00
- Package Width: 11.40
- Package Height: 10.30
- Package Weight: 45.55
