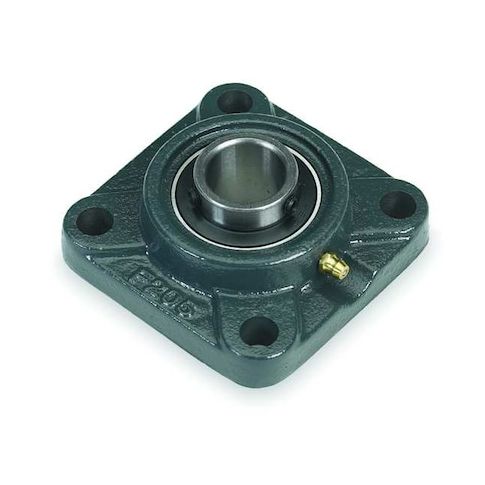

4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 3/4 in Dia, Cast Iron, Set Screw MPN:3FCX2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0748142
4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 3/4 in Dia, Cast Iron, Set Screw
This 4-bolt flange bearing from Dayton is designed for use in highly dusty and dirty environments, featuring a single-sealed closure and fixed expansion type. The bearing insert is made of alloy steel and has a radial ball type design, while the housing is constructed of cast iron. With a maximum speed of 7,300 RPM and a temperature rating of 200 degrees F, this bearing is suitable for a wide range of applications, including heavy machinery, industrial equipment, and manufacturing processes. Its compact size and durable construction make it an ideal choice for applications where space and reliability are crucial.
Top product features:
- 4-Bolt flange design for secure mounting
- Single sealed closure for protection from dust and dirt
- Cylindrical bore diameter of 3/4in for precise fit and reduced friction
Top product applications:
- Pump and Motor Mounting
- Gearbox and Motor Mounting
- Conveyor and Pulley Mounting
4 Bolt Flange Bearing, Back Side to Center Width 0.591 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 3/4 in, Bore Type Cylindrical, Center Height 1 11/16 in, Closure Single Sealed, Expansion Type Fixed, For Environment Highly Dusty and Dirty, Housing Material Cast Iron, Housing Type Square, Included Bearing WJB UC204-12 Insert Bearing, Lubricant Material Chevron SRI 2, NLGI #2 Equivalent, Maximum Speed 7,300 RPM Grease, Maximum Temperature 200 Degrees F
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 2.00
- Package Height: 3.50
- Package Weight: 1.43
Product info last updated on February 3, 2026 10:19am UTC
Category: Bearings, V-belts and Power Transmission Equipment
