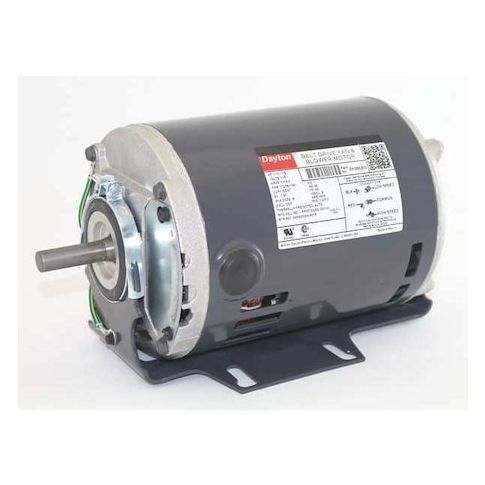

Split-Phase Belt Drive Motor, 1/3, 1/9 HP, 48 Frame, 115V AC Voltage, 1, 725/1, 140 Nameplate RPM MPN:3K386
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0742183
Split-Phase Belt Drive Motor, 1/3, 1/9 HP, 48 Frame, 115V AC Voltage, 1, 725/1, 140 Nameplate RPM
This 1/3 and 1/9 HP Split-Phase Belt Drive Motor from Dayton is a reliable and efficient solution for various applications. Suitable for use in fan and blower systems, it offers a continuous duty cycle and a maximum ambient temperature of 40 degrees C. The motor's open drip-proof enclosure and cradle base mounting type provide easy installation and maintenance. With a nameplate RPM of 1,725/1,140 and a voltage of 115V AC, this motor is ideal for use in a range of settings, including industrial, commercial, and residential environments. Its compact size and lightweight design make it easy to integrate into existing systems.
Top product features:
- Split-phase design for improved efficiency and reliability
- Two-speed operation for adjustable speed control
- Open drip-proof enclosure for dust and moisture protection
Top product applications:
- Industrial laundry equipment
- Pneumatic conveyor systems
- Vacuum equipment
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/3 hp, 1/9 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, 5.9/4.8 A Full Load Amps, 48 Frame, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel, Motor Mounting Position All Angle
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 32.99
Product info last updated on February 7, 2026 4:00pm UTC
Category: Motors
