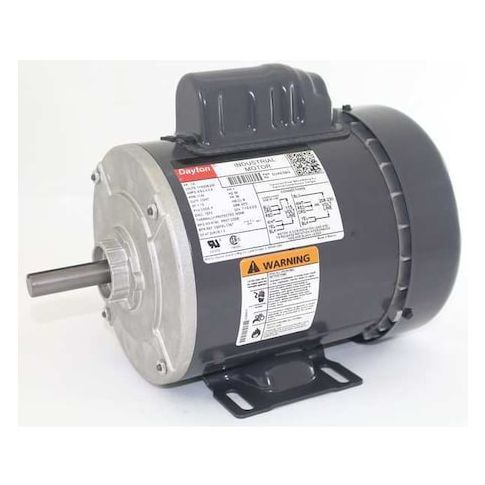

Capacitor-Start General Purpose Motor, 1/4 hp HP, 56 Frame, 115/208-230V AC Voltage
This 1/4 hp Capacitor-Start General Purpose Motor from Dayton is a reliable and efficient solution for a wide range of applications. Suitable for use in 115/208-230V AC environments, it offers a nameplate RPM of 1,140 and a continuous duty cycle. The motor features a totally enclosed fan-cooled design, providing protection from harsh environments and ensuring optimal performance. Its compact 56 frame size makes it easy to integrate into new or existing systems. Ideal for use in residential and commercial settings, this motor is perfect for applications such as fans, pumps, and conveyor systems, where reliable operation is crucial.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reduced maintenance
- Single Phase motor design for use in a wide range of applications
- Continuous duty cycle for reliable operation in demanding environments
Top product applications:
- Pumps and compressors for residential and commercial use
- Fans and blowers for industrial and commercial ventilation systems
- Conveyors and other machinery for material handling applications
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/4 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.9/3.4-3 A, 56 Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 24.00
