Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 115/230V AC Voltage, 56H Frame MPN:5PHA8A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0728743

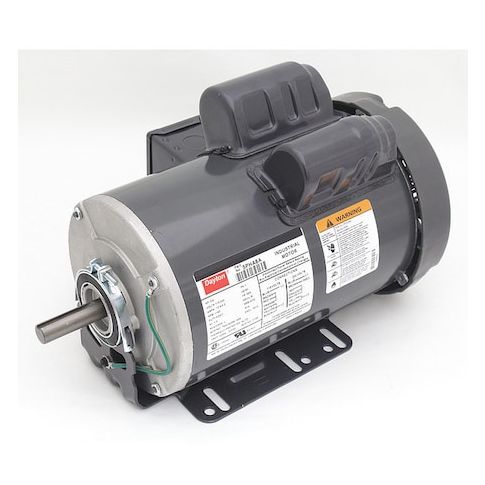

Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 115/230V AC Voltage, 56H Frame
This 3/4 hp general purpose motor from Dayton is designed for single-phase applications, offering a reliable and efficient solution for various industrial and commercial needs. With a capacitor-start/run design, it provides consistent performance and a long lifespan. The motor's totally enclosed fan-cooled design ensures safe operation in harsh environments, while its cradle base mounting and all-angle positioning make installation easy. Suitable for a range of applications, including pumps, fans, and conveyors, this motor is a versatile and cost-effective choice for industries requiring continuous duty cycles. Its compact size and lightweight design make it easy to integrate into existing systems.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability
- Keyed motor shaft for secure and precise mounting
- Continuous duty cycle for reliable operation in demanding applications
Top product applications:
- Pump applications, such as water pumps or sump pumps
- Fans and blowers for general ventilation or air circulation
- Conveyor systems for material handling and transportation
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 10.4/5.2 A, 56H Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Shaft Design Keyed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 39.74
Product info last updated on February 1, 2026 11:40am UTC
Category: Motors
