Agricultural Fan Motor, Permanent Split Capacitor, 1/2 HP, 115/230V AC, 1, 700 Nameplate RPM MPN:1YAZ9BG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0715023

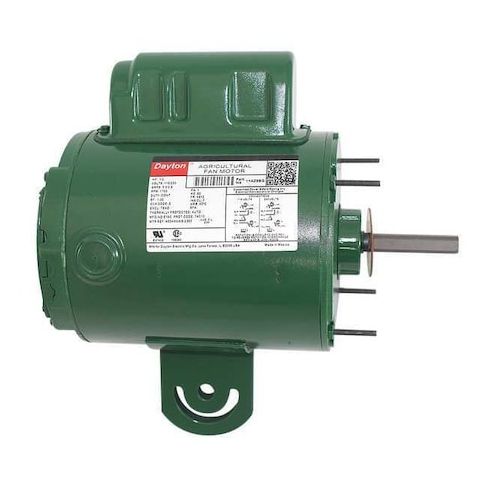

Agricultural Fan Motor, Permanent Split Capacitor, 1/2 HP, 115/230V AC, 1, 700 Nameplate RPM
This Dayton Agricultural Fan Motor is designed for heavy-duty use in farm applications, featuring a permanent split capacitor design for reliable operation. With a 1/2 HP rating and 1,700 RPM, it provides efficient air movement for ventilation, cooling, and drying purposes. The motor's single-phase, 115/230V AC design makes it easy to integrate into existing systems. Its farm-duty construction ensures continuous operation in harsh environments, with a maximum ambient temperature of 40°C. Suitable for use in greenhouses, barns, and other agricultural settings, this motor offers a reliable and efficient solution for a variety of farm applications.
Top product features:
- Permanent Split Capacitor motor design
- Totally Enclosed Air-Over motor enclosure design
- Motor shaft rotation in both clockwise and counterclockwise directions
Top product applications:
- Agricultural ventilation systems
- Dust collection systems in woodworking shops
- Greenhouse climate control systems
Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,700 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.5/2.8 A, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Yoke, Motor Mounting Position All Angle, Motor Frame Material Steel, Finish Green
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 12.00
- Package Height: 10.50
- Package Weight: 22.30
Product info last updated on January 30, 2026 11:23pm UTC
Category: Motors
