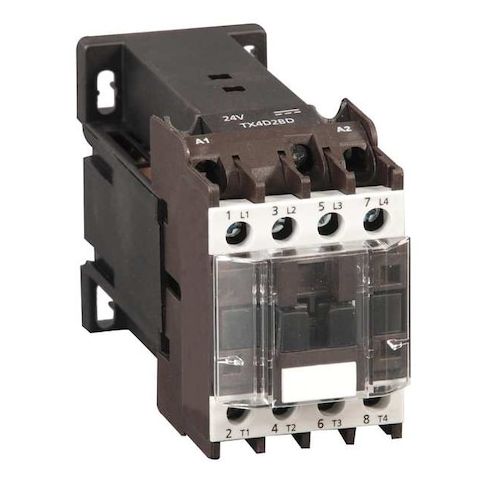

IEC Magnetic Contactor, No Auxiliary Contacts, 24V DC, 4 P, Non-Reversing MPN:6ECE5
Free Shipping
In Stock
The DAYTON IEC Magnetic Contactor is a reliable and efficient solution for controlling power circuits in a variety of applications. Designed for use in control panels, this four-pole, non-reversing contactor features a 24V DC coil and 2NC/2NO main contact configuration. Suitable for use in industrial settings, it can handle up to 12A inductive and 25A resistive loads. With a compact design and durable construction, this contactor is ideal for use in HVAC, conveyor systems, and other applications where precise control is necessary. Its IEC-standard design ensures compatibility with a wide range of control panels and systems.
Top product features:
- Operates at 24 V DC
- Configured as a non-reversing contactor
- Has a 2NC/2NO main contact configuration
Top product applications:
- Motor Control
- Control of fans and pumps
- Power distribution in control panels
The DAYTON IEC Magnetic Contactor is an IEC-standard, four-pole, electrically operated switch rated for use in controlling power circuits within specified parameters. It uses a 24 V DC coil and is configured as a non-reversing contactor. The main contact configuration is 2NC/2NO, and the unit is intended for installation in control panels with compatible specifications.
- Action: Non-Reversing
- - Reversing: No
- - Coil Voltage: 24 V DC
- - Coil Volts: 24 V DC
- - Contactor Style: IEC
- - Poles: 4
- - Main Contact Configuration: 2NC/2NO
- - Auxiliary Contact Form: does not include auxiliary contacts
- - Embedded Surge Suppressor: No
- - Enclosure NEMA Rating: does not include an enclosure
- ensure proper mounting and environmental considerations
- - Height: 1.77 in
- - Width: 1.77 in
- - Depth: 4.52 in
- - Full Load Amps-Inductive: 12 A
- - Full Load Amps-Resistive: 25 A
- - Full Load Current - Inductive: 12 A
- - Full Load Current - Resistive: 25 A
- - HP @ 1 Phase - 120V: 1 hp
- - HP @ 1 Phase - 230V: 2 hp
- - HP @ 1 Phase - 240V: 2 hp
- - Hz: 50/60
- - Standards: CSA, UL Listed
- - Number of Poles: 4
- - Overall Depth: 4.52 in
- - Overall Height: 1.77 in
- - Overall Width: 1.77 in
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.10
- Package Height: 5.00
- Package Weight: 0.60
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
