Three-Phase General Purpose Motor, 3 HP, 213/5 Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM MPN:36VE86
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0692295

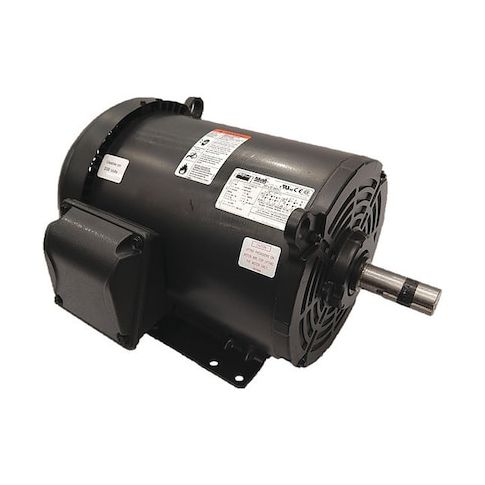

Three-Phase General Purpose Motor, 3 HP, 213/5 Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM
This 3 HP three-phase general purpose motor from Dayton is designed for a wide range of industrial applications, including manufacturing, material handling, and HVAC systems. Its totally enclosed fan cooled design ensures reliable operation in harsh environments, while its rigid base mounting type provides stable performance. With a nameplate RPM of 1,770 and a service factor of 1.15, this motor is ideal for continuous duty applications. Its high efficiency and durable construction make it a cost-effective solution for demanding industrial processes, and its CE, CSA, and UL certifications ensure compliance with international safety standards.
Top product features:
- Three-Phase General Purpose Motor is totally enclosed fan cooled, providing a safe and efficient design.
- Motor has a rigid base mounting type, allowing for secure and stable installation.
- Motor has a service factor of 1.15, indicating its ability to handle loads above its nameplate rating.
Top product applications:
- Pumps
- Fans
- Compressors
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1,770, Frame 213/5, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 7.8/3.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.20
- Package Width: 16.00
- Package Height: 14.20
- Package Weight: 110.00
Product info last updated on February 12, 2026 9:26pm UTC
Category: Motors
